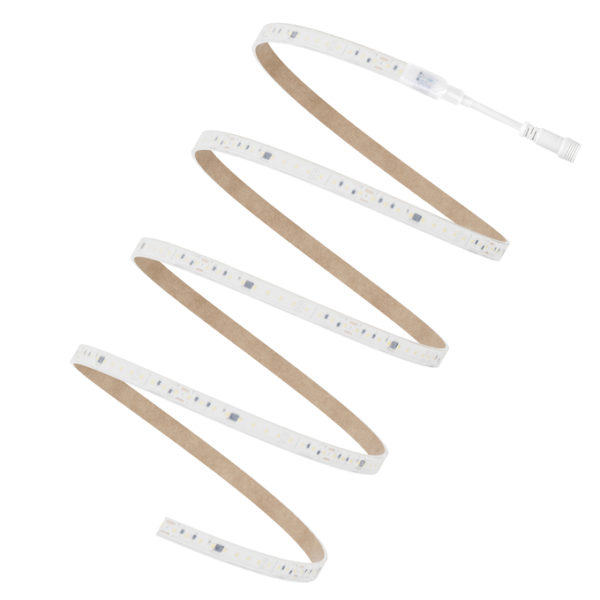

LS P AC 1300 865 50M IP66

LS P AC 1300 865 50M IP66

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854584466 Категория:
Product benefits
  • Great scope of design options due to 50 m long and flexible LED strips
  • Easy mounting on many smooth surfaces thanks to self-adhesive tape
  • Maximum flexibility due to large range of accessories with integrated over-current protection (3.15A)
  • Simple connection thanks to integrated cables with fast twist lock connectors
  • Suitable for use in damp conditions thanks to high type of protection
Areas of application
  • General indoor illumination
  • General outdoor illumination
  • Industry and construction site
  • Offices, retail outlets and conference rooms
  • Architecture lighting
  • Decorative illumination
Product features
  • Direct power supply with 220-240V AC mains
  • Flexible and cuttable LED strip
  • Smallest cuttable unit: 100 mm
  • Lifetime (L70/B50): up to 50,000 h at Ta: 45°C
  • Luminous flux: 1300 lm/m
  • Prewired LED strip with 200 mm long fast twist lock connector for 220-240V AC mains supply connection
  • Type of protection: IP66
Equipment / Accessories
  • Connectors for several mounting options available
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Disconnect mains before installation.
GTIN

4099854584466
Nominal wattage

550.00 W 1)
Nominal voltage

220…240 V
Nominal current

2400 mA 3)
Luminous flux

60300 lm 2)
Luminous efficacy

111 lm/W 1)
Color temperature

6500 K
Light color (designation)

Cool Daylight
Color rendering index Ra

> 80
Standard deviation of color matching

6 sdcm
Beam angle

120 °
Height

4.50 mm
Product weight

69.4 g 1)
Product color

Transparent
Body material

Silicone
Ambient temperature range

-20…+45 °C
Temperature range at storage

-20…+80 °C
Type of protection

IP66
Dimmable

No
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Protection class

II
Mains frequency

50/60 Hz
Inrush current

12 A
Power factor λ

> 0.90
Length

50000.00 mm
Width

12.00 mm
Product remark

Suitable for DC input only in combination with LED DRIVER — DR P 500W 220-240V 215V
Construction wattage

12.00 W 1)
Type of current

AC/DC
Cable length

266.000
Temperature range in operation

-20…+45 °C
Dimming interface

Not dimmable
Permitted rel. humidity during operation

0…93 %
Max. ECG no. on circuit breaker 10 A (B)

3
Max. ECG no. on circuit breaker 25 A (B)

8
Nominal lamp life time

50000 h
Energy class of contained light source

E
Nominal wattage per meter

12 W 2)
Luminous flux per meter

1340 lm 3)
Number of LEDs per meter

120
Lowest bending radius

30 mm
Self-adhesive

Yes
Length – smallest unit

100 mm
