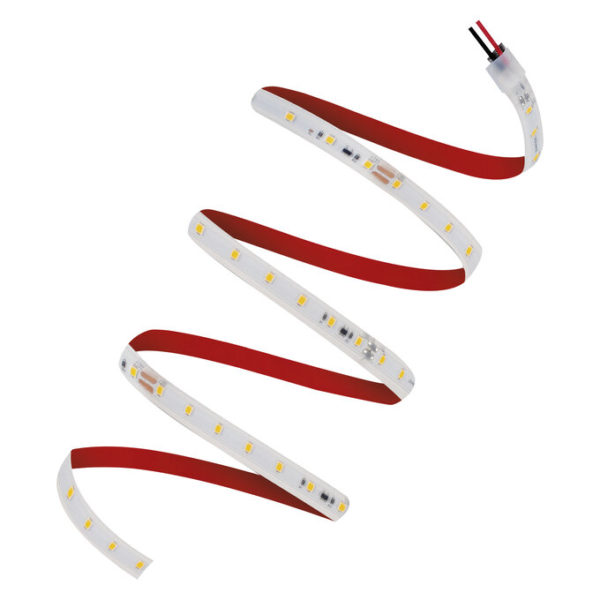

LS PFM -1000/865/5/IP66

LS PFM -1000/865/5/IP66

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075236103 Категория:
Product benefits
  • Great scope of design options due to long and flexible LED strips
  • Easy installation, no tools required for connection
  • Easy mounting on many smooth surfaces thanks to self-adhesive tape
  • Suitable for use in damp conditions thanks to high type of protection
  • Maximum flexibility due to large range of accessories
  • Simple connection thanks to integrated cables on both sides
Areas of application
  • General indoor illumination
  • General outdoor illumination
  • Industry
  • Offices, retail outlets and conference rooms
  • Architecture lighting
Product features
  • Flexible and cuttable LED strip
  • Smallest cuttable unit: 100 mm
  • Lifetime (L70/B50): up to 35,000 h at Tc max.: 75°C
  • Luminous flux: 1000 lm/m
  • Color rendering index Ra: > 80
  • Initial color consistency: ≤ 4 SDCM
  • Large range of color temperatures: from warm white to cool daylight
  • Type of protection: IP66
  • Dimmable with suitable drivers, see also
  • UV restistance (acc. IEC 60068-2-5)
  • Salt mist resistance (acc. IEC 60068-2-52)
Equipment / Accessories
  • Connectors, profiles and covers for several mounting options available
  • Endcaps have to be ordered separately
Safety advice
  • All electrical connections must be made by a qualified person.
GTIN

4058075236103
Nominal wattage

40.50 W
Nominal voltage

24 V 1)
Nominal current

1687.000 mA
Luminous flux

4750 lm
Luminous efficacy

117.3 lm/W
Color temperature

6500 K
Light color (designation)

Cool Daylight
Color rendering index Ra

> 80
Standard deviation of color matching

≤4 sdcm
Beam angle

105 °
Height

4.50 mm
Product weight

285.00 g
Ambient temperature range

-15…+45 °C 1)
Temperature range at storage

-35…+85 °C
Type of protection

IP66
Dimmable

Yes 1)
Number of switching cycles

100,000
Standards

Acc. to IEC 624
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Cover material

Silicone
Length

5000.00 mm
Width

10.00 mm
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Energy efficiency class

A+
Energy consumption

44.55 kWh/1000h
Construction wattage

40.50 W
Type of current

DC
Maximum temperature at tc test point

75 °C 2)
Cable length

500.000
Input voltage range

23…25 V 1)
Temperature range in operation

-15…+75 °C 3)
Approval marks – approval

T
Prewired

Yes
Conductor cross section

0.5 mm²
Light color LED

Daylight
Number of LEDs per module

350
Nominal lamp life time

35000 h
Nominal wattage per meter

8.1 W
Luminous flux per meter

950 lm
Number of LEDs per meter

70
Lowest bending radius

25 mm
Self-adhesive

Yes
Luminous flux per module chain

4750 lm
Number of LEDs per smallest unit

7
Length – smallest unit

100 mm
LED pitch

14.3 mm
Salt mist resistance acc. IEC 60068-2-52

Yes
UV resistance acc. IEC 60068-2-5

Yes
Short pitch

No
Reverse Voltage

25 V 1)
Reverse polarity protection

Up to maximum 25 VDC
