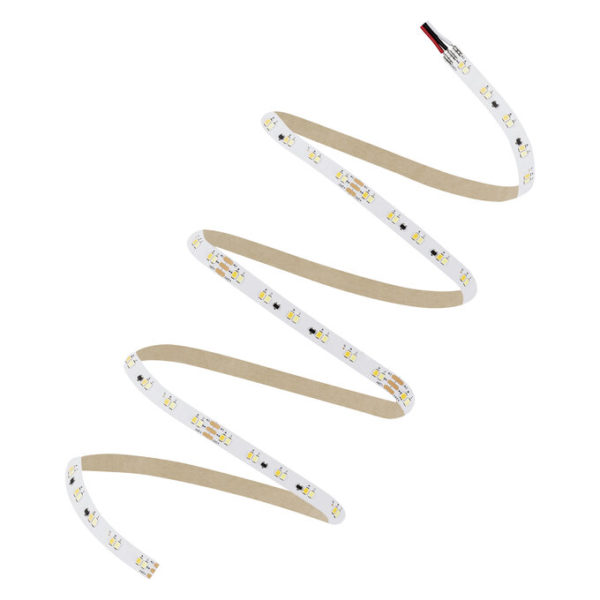

LS SUP -2000/TW/927-965/5

LS SUP -2000/TW/927-965/5

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075436084 Категория:
Product benefits
  • Great scope of design options due to long and flexible TW LED strips
  • Easy installation, no tools required for connection
  • Easy mounting thanks to self-adhesive tape
  • Maximum flexibility due to large range of accessories
  • Simple connection thanks to integrated cables on both sides
Areas of application
  • Cove lighting
  • Hotels
  • Offices
  • General illumination
Product features
  • Adjustable color temperature via Tunable White: 2,700…6,500 K
  • Smallest cuttable unit: 100 mm
  • Lifetime (L70/B50): up to 50,000 h at Tc max. ≤ 85°C
  • Dimmable by pulse width modulation (PWM)
  • Compatible with LEDVANCE Tunable White RF control devices
  • Very good color rendering index Ra: > 90
Safety advice
  • All electrical connections must be made by a qualified person.
GTIN

4058075436084
Nominal wattage

108.00 W
Nominal voltage

24 V 2)
Nominal current

4500 mA
Luminous flux

9140 lm
Luminous efficacy

79 lm/W
Color temperature

2700…6500 K
Light color (designation)

Tunable White
Color rendering index Ra

> 90
Standard deviation of color matching

‹4 sdcm
Beam angle

120 °
Height

1.20 mm
Product weight

140.00 g
Ambient temperature range

-20…+55 °C 1)
Temperature range at storage

-35…+85 °C
Type of protection

IP00
Dimmable

Yes 1)
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Protection class

III
Length

5000.00 mm
Width

10.00 mm
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Construction wattage

108.00 W
Type of current

DC
Maximum temperature at tc test point

85 °C 2)
Cable length

500.000
Input voltage range

23…25 V 2)
Prewired

Yes
Conductor cross section

0.5 mm²
Light color LED

Tunable White
Rated beam angle (half peak value)

120.00 °
Number of LEDs per module

600
Nominal lamp life time

50000 h
Energy class of contained light source

G
Nominal wattage per meter

21.6 W 1)
Luminous flux per meter

1700 lm
Number of LEDs per meter

120
Lowest bending radius

30 mm
Self-adhesive

Yes
Luminous flux per module chain

9924 lm
Number of LEDs per smallest unit

6
Length – smallest unit

100 mm
LED pitch

16.67 mm
Salt mist resistance acc. IEC 60068-2-52

No
UV resistance acc. IEC 60068-2-5

No
Short pitch

No
Luminous flux per meter - Warm white

950 lm/m
Luminous flux per meter - Cool white

1060 lm/m
