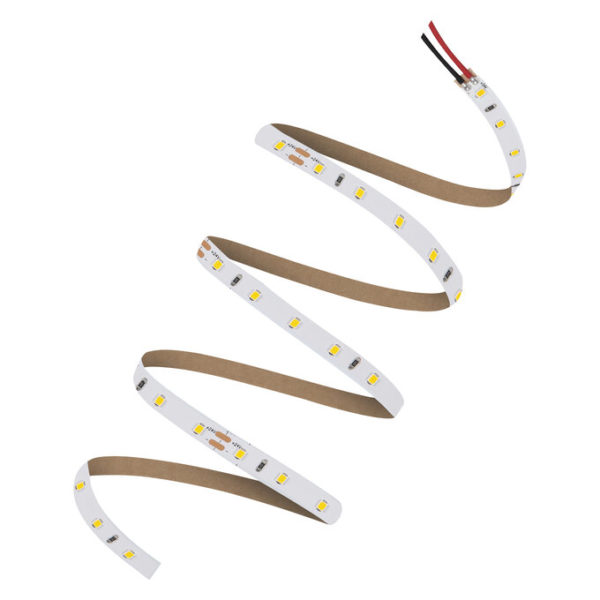

LS V -500/830/5

LS V -500/830/5

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075707818 Категория:
Product benefits
  • Great scope of design options due to long and flexible LED strips
  • Easy installation, no tools required for connection
  • Easy mounting on many smooth surfaces thanks to self-adhesive tape
  • Maximum flexibility due to large range of accessories
  • Simple connection thanks to integrated cables on both sides
Areas of application
  • General indoor illumination
  • Decorative illumination
  • Private living areas
Product features
  • Flexible and cuttable LED strip
  • Smallest cuttable unit: 100 mm
  • Lifetime (L70/B50): up to 30,000 h at Tc max.: 75°C
  • Luminous flux: 500 lm/m
  • Color rendering index Ra: 80
  • Large range of color temperatures: from warm white to cool daylight
  • Dimmable with suitable drivers, see also
Equipment / Accessories
  • Connectors, profiles and covers for several mounting options available
  • Endcaps have to be ordered separately
GTIN

4058075707818
Nominal wattage

24.00 W
Nominal voltage

24 V
Nominal current

1000 mA
Luminous flux

2375 lm
Luminous efficacy

108 lm/W 1)
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

> 80
Standard deviation of color matching

≤5 sdcm
Beam angle

120 °
Height

1.50 mm
Product weight

78.00 g
Ambient temperature range

-20…+55 °C
Temperature range at storage

-20…+80 °C
Type of protection

IP00
Dimmable

Yes 1)
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Protection class

III
Length

5000.00 mm
Width

8.00 mm
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Construction wattage

24.00 W
Type of current

DC
Maximum temperature at tc test point

75 °C
Cable length

500.000
Input voltage range

23…25 V
Prewired

Yes
Conductor cross section

0.5 mm²
Light color LED

Warm White
Rated beam angle (half peak value)

120.00 °
Number of LEDs per module

350
Nominal lamp life time

30000 h
Energy class of contained light source

F
Nominal wattage per meter

5 W
Luminous flux per meter

540 lm 1)
Number of LEDs per meter

70
Lowest bending radius

30,0 mm
Self-adhesive

Yes
Number of LEDs per smallest unit

7
Length – smallest unit

100 mm
LED pitch

14.29 mm
Salt mist resistance acc. IEC 60068-2-52

No
UV resistance acc. IEC 60068-2-5

No
Short pitch

No
