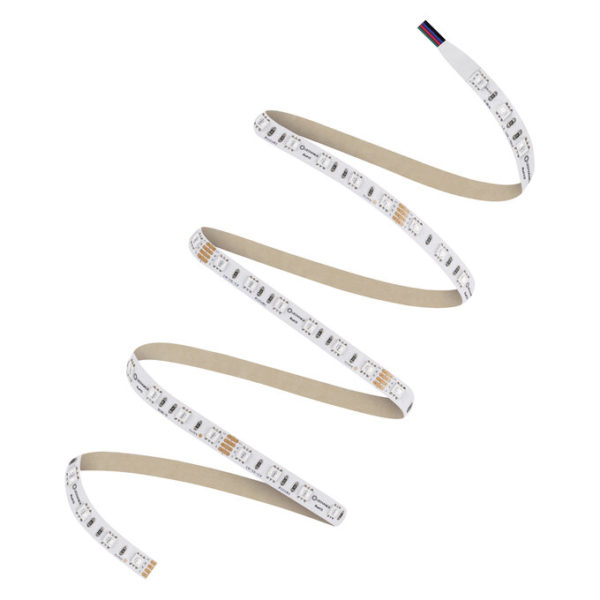

LS VAL -500/RGB/5

LS VAL -500/RGB/5

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075404441 Категория:
Product benefits
  • Great scope of design options due to long and flexible RGB LED strips
  • Uniform color changing
  • Easy installation, no tools required for connection
  • Easy mounting on many smooth surfaces thanks to self-adhesive tape
  • Maximum flexibility due to large range of accessories
  • Simple connection thanks to integrated cables on both sides
Areas of application
  • Effect lighting in architecture
  • Dynamic effects in public zones
  • Cove lighting
  • Under-cabinet lighting
  • Hotels and Offices
  • Residential interiors
Product features
  • Flexible and splittable LED strip with inline multichip RGB LEDs
  • Smallest cuttable unit: 100 mm
  • Lifetime (L70/B50): up to 40,000 h at Tc max.: 75°C
  • Dimmable by pulse width modulation (PWM)
Safety advice
  • All electrical connections must be made by a qualified person.
GTIN

4058075404441
Nominal wattage

67.00 W
Nominal voltage

24 V 2)
Nominal current

2800 mA
Luminous flux

2400 lm
Luminous efficacy

37.2 lm/W 1)
Light color (designation)

RGB
Beam angle

120 °
Height

2.20 mm
Product weight

110.00 g
Ambient temperature range

-20…+45 °C 1)
Temperature range at storage

-20…+85 °C
Type of protection

IP00
Dimmable

Yes 1)
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Protection class

III
Length

5000.00 mm
Width

10.00 mm
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Construction wattage

67.00 W
Type of current

DC
Maximum temperature at tc test point

75 °C 2)
Cable length

500.000
Input voltage range

23…25 V 2)
Approval marks – approval

Ro
Prewired

Yes
Conductor cross section

0.5 mm²
Light color LED

RGB
Rated beam angle (half peak value)

120.00 °
Number of LEDs per module

300
Nominal lamp life time

40000 h
Nominal wattage per meter

14.4 W 1)
Luminous flux per meter

535 lm 1)
Number of LEDs per meter

60
Lowest bending radius

30 mm
Self-adhesive

Yes
Luminous flux per module chain

2400 lm
Luminous flux per meter - Red

106 lm/m 1)
Luminous flux per meter - Green

325 lm/m 1)
Luminous flux per meter - Blue

73 lm/m 1)
Luminous flux per meter - RGB

535 lm/m 1)
Number of LEDs per smallest unit

6
Length – smallest unit

100 mm
LED pitch

16.7 mm
Salt mist resistance acc. IEC 60068-2-52

No
UV resistance acc. IEC 60068-2-5

No
Short pitch

No
Reverse Voltage

27 V 2)
