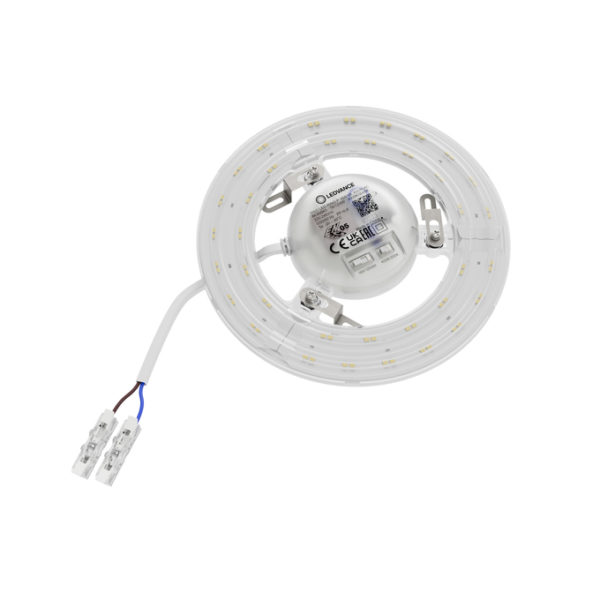

MAG LED RING P 16W ML 83040 AC

MAG LED RING P 16W ML 83040 AC

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854756788 Категория:
Product benefits
  • Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver
  • Retrofitting without completely replacing existing luminaires
  • With 3 strong neodymium magnets for easy installation and additional secure screw connection
  • If necessary, the old luminaire may remain installed on the ceiling or wall during the conversion process
  • Simple and quick upgrade solution
  • 5 years guarantee
Areas of application
  • Corridors
  • Stairways
  • Foyers
Product features
  • LED ring module with integrated LED driver and magnetic feet for retrofitting protection class I luminaires
  • Magnetic luminaire insert for modernizing existing traditional wall and ceiling luminaires
  • Available in 3 different diameters: 130 mm, 180 mm and 230 mm
  • Indoor luminaire with high luminous efficacy up to 150 lm/W
  • Suitable for central battery emergency installations acc. to EN 60598-2-22
Equipment / Accessories
  • Mounting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
  • Caution, risk of electric shock.
  • Warning! Pacemaker. Magnets could affect the function of pacemakers and implanted heart defibrillators. A pacemaker could switch into test mode and cause illness. A defibrillator may stop working. If you wear these devices keep sufficient distance to magnets. Warn others who wear these devices from getting too close to magnets.
References / Links
  • For Guarantee see
GTIN

4099854756788
Nominal wattage

16 W / 12 W / 8 W
Nominal voltage

220…240 V
Nominal current

70mA / 54mA / 38 mA
Luminous flux

2400 lm / 1800 lm / 1200 lm 1)
Luminous efficacy

150 lm/W 2)
Color temperature

3000 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

≤5 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

160 °
Height

31.00 mm
Product weight

213.00 g
Product color

White
Housing color

White
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+45 °C
Temperature range at storage

-40…+85 °C
Type of protection

IP20
Dimmable

No
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

180.00 mm
Replaceable light source

No
Mounting location

Ceili
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

0/50/60 Hz
Inrush current

3.90 A
Inrush current time Th50

33.2 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

192
Max. number of luminaires per miniature circuit breaker C10

129
Max. number of luminaires per miniature circuit breaker C16

206
Protection class IK (shock resistance)

IK05
Application environment

Indoor
Product remark

Available from March 2026
Added function

MULTI SELECT
Lifespan L80/B10 at 25 °C

50000 h 1)
Light emitting surface material

Plastic
Output current

188mA / 138mA / 90 mA
Surge capability (L-N)

1000 V
Low flicker

Yes
RAL Color (most similar)

RAL 9006
Type of Emergency Lighting (EL)

EL certified driver (0Hz / DC operation) for central battery operation included
8 W

140 lm/W
12 W

140 lm/W
16 W

140 lm/W
