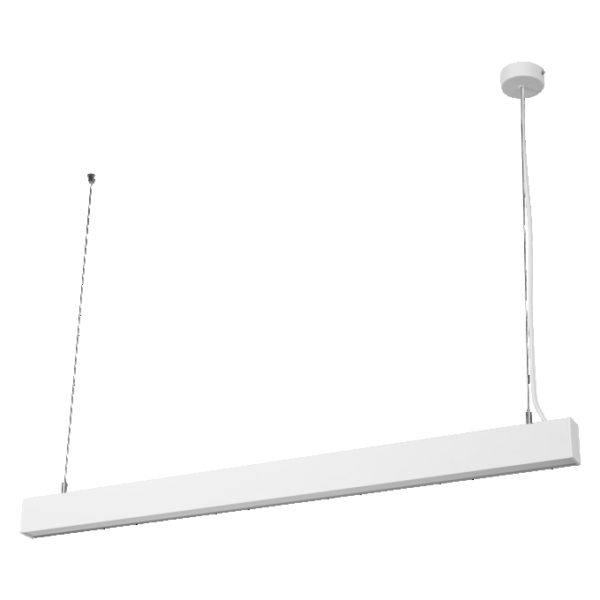

Office Line Cuboid Suspended 42W 840 DIM White

Office Line Cuboid Suspended 42W 840 DIM White

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854464799 Категория:
Product benefits
  • Linear luminaire in modern design
  • 3 step dimming via switch on top of the luminaire
  • Second light source on top for indirect light
  • High quality metal housing
Areas of application
  • Office lighting
  • Indoor applications
  • Home offices
  • General indoor illumination
  • Kitchens, workspaces
Product features
  • Lifetime up to 100,000 h
  • Color temperature: 4,000 K
  • Material: Aluminium (Housing), Polycarbonate (Diffuser)
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
GTIN

4099854464799
Nominal wattage

42.00 W
Nominal voltage

220…240 V
Nominal current

187.000 mA
Luminous flux

5000 lm
Luminous efficacy

120 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

105 °
Height

70.00 mm
Product weight

1600.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 3-Pole (L, N, PE)
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1), 1,3,5-Triazine-2,4,6-triamine (108-78-1)
Mounting type

Suspended
Protection class

I
Mercury content

0.0 mg
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current time Th50

153.8 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

Mains voltage
Total luminous flux of contained light sources

5500 lm
Max. number of luminaires per miniature circuit breaker B16

24
Max. number of luminaires per miniature circuit breaker C10

25
Max. number of luminaires per miniature circuit breaker C16

40
Protection class IK (shock resistance)

IK03
Length

1126.00 mm
Width

41.00 mm
Type of dimming

3 DIM
