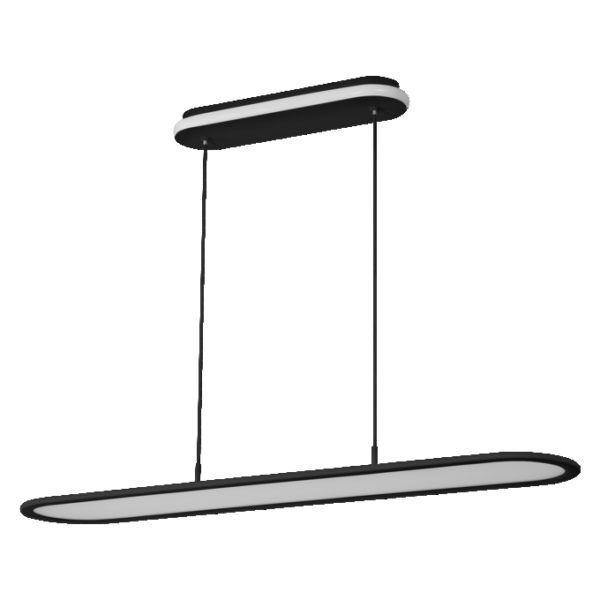

Office Line Panel Ellipse 57W 940 Black

Office Line Panel Ellipse 57W 940 Black

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854464874 Категория:
Product benefits
  • Suspended mounting to light up the working surface
  • Ambient light on the luminaire base
  • Click-DIM: dimmable in three steps by repeated switching
  • High CRI value of >90 for natural-looking colors
  • With a UGR value of <19, the luminaire meets the requirements for VDU workstations and reduces eye strain
Areas of application
  • Office lighting
  • Home offices
  • Indoor applications
Product features
  • Modern design for office applications
  • Lifetime up to 30,000 h
  • Color temperature: 4,000 K
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
GTIN

4099854464874
Nominal wattage

57.00 W
Nominal voltage

220…240 V
Nominal current

245.000 mA
Luminous flux

2700 lm
Luminous efficacy

50 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 90
Standard deviation of color matching

≤6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

102.00 °
Height

1500.00 mm
Product weight

3600.00 g
Product color

Black
Housing color

Black
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

15000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Suspended
Protection class

II
Mercury content

0.0 mg
With light source

Yes
Cover material

Plastic
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current time Th50

28.1 µs
Power factor λ

0.90
Total harmonic distortion

< 10 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Total luminous flux of contained light sources

6336 lm
Max. number of luminaires per miniature circuit breaker B16

51
Max. number of luminaires per miniature circuit breaker C10

32
Max. number of luminaires per miniature circuit breaker C16

51
Protection class IK (shock resistance)

IK03
Length

1000.00 mm
Width

200.00 mm
Type of dimming

3 DIM
UGR

< 19
