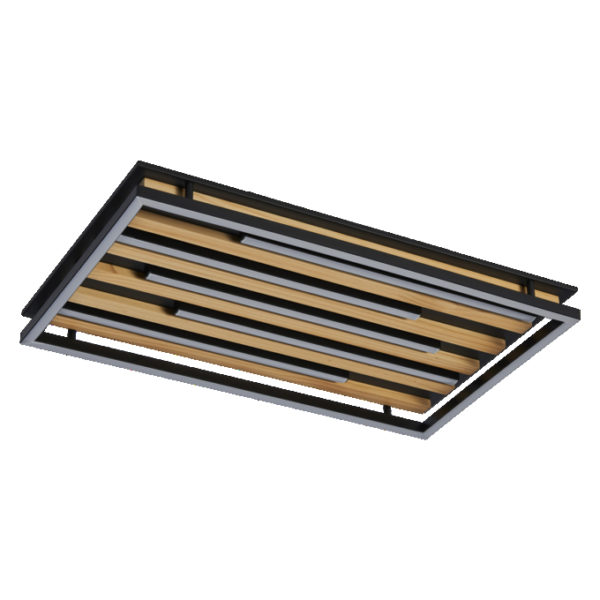

Orbis Acoustic 510x310mm 30W Click DIM

Orbis Acoustic 510x310mm 30W Click DIM

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075859418 Категория:
Product benefits
  • Click dim function by wall switch
  • Set light output from 30-50-100 % for personal comfort
  • Easy to install and use
  • Stylish and modern design
Areas of application
  • Indoor
  • Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
  • Type of protection: IP20
  • Lifetime up to 30,000 h
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
GTIN

4058075859418
Nominal wattage

30.00 W
Nominal voltage

220…240 V
Nominal current

135.000 mA
Luminous flux

1750 lm
Luminous efficacy

58 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

> 80
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

110 °
Height

70.00 mm
Product weight

2080.00 g
Product color

Black, Wood decor
Housing color

Black, Wood decor
Body material

STEEL, PINEWOOD
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

15000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Power factor λ

> 0.9
Total harmonic distortion

< 20 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

4280 lm
Protection class IK (shock resistance)

IK03
Length

514.00 mm
Width

314.00 mm
Type of dimming

CLICKSWITC
Application environment

Indoor
