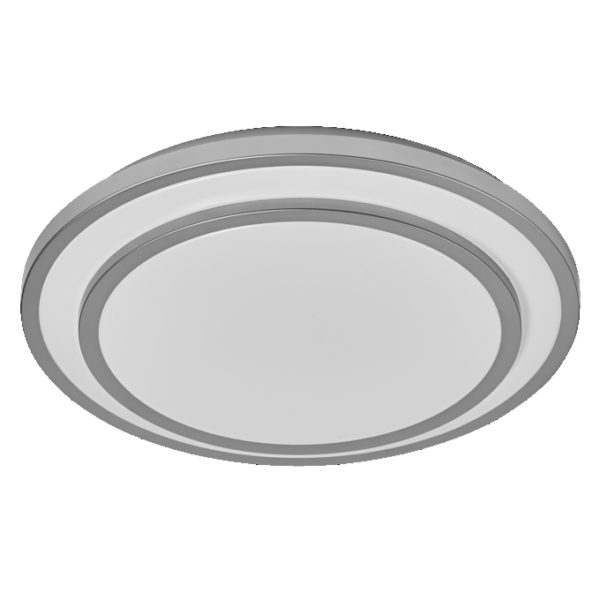

Orbis Berlin 390 mm 24W 830 SI

Orbis Berlin 390 mm 24W 830 SI

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854446559 Категория:
Product benefits
  • Very homogenous light
  • Elegant design
Areas of application
  • Indoor applications
  • Kitchens, living rooms, children’s rooms or home offices
Product features
  • Decorative domestic lighting
  • Ceiling luminaire with advanced LED technology
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
GTIN

4099854446559
Nominal wattage

24.00 W
Nominal voltage

220…240 V
Nominal current

185.000 mA
Luminous flux

1500 lm
Luminous efficacy

62 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

≥80
Standard deviation of color matching

≤6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

78.00 mm
Product weight

770.00 g
Product color

Silver
Housing color

Silver
Body material

Metal
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 3-Pole (L, N, PE)
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

390.00 mm
Replaceable light source

No
Mounting type

Surface
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Plastic
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Power factor λ

> 0.5
Total harmonic distortion

< 101 %
Operating mode

Electronic control gear (ECG)
Glow Wire Test according to IEC 60695-2-12

650 °C
Total luminous flux of contained light sources

2700 lm
Max. number of luminaires per miniature circuit breaker B16

35
Max. number of luminaires per miniature circuit breaker C16

48
Photobiological safety group acc. to EN62471

RG0
Application environment

Indoor
Number of illuminants

empty
