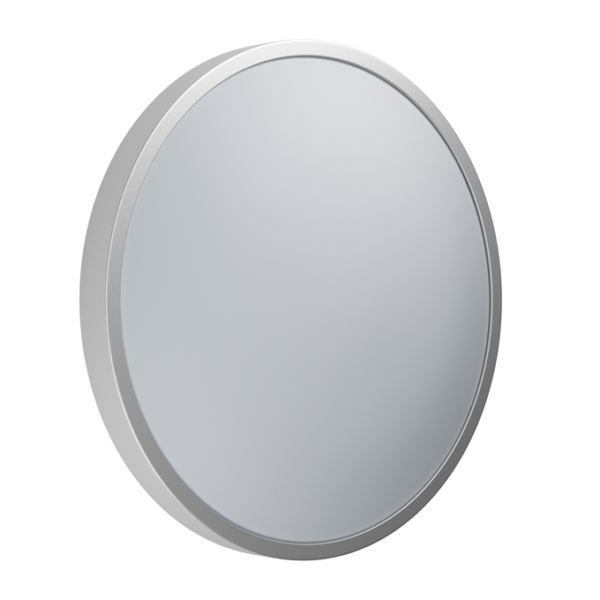

Orbis Click-CCT 410mm 24W

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075651753 Категория:
Product benefits
  • Very homogenous light
  • Easy and quick installation
Areas of application
  • For indoor use only
  • Decorative domestic lighting
  • Ceiling and wall surface mounting
Product features
  • Ceiling luminaire with advanced LED technology
  • Circular light emission
  • Remote-CCT version: color temperature, dimming, timer, memory and night functions via remote control
  • Click-CCT version: color temperature adjustable in three steps by repeated switching
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
GTIN

4058075651753

Nominal wattage

24.00 W

Nominal voltage

220…240 V

Nominal current

105 mA

Luminous flux

1800 lm

Luminous efficacy

75 lm/W

Color temperature

2700 K / 4000 K / 6500 K

Light color (designation)

Warm Whi

Color rendering index Ra

> 80

Standard deviation of color matching

< 6 sdcm

Photobiological safety group acc. to EN62778

RG1

Beam angle

120 °

Height

80.00 mm

Product weight

860.00 g

Product color

White

Housing color

White

Body material

Aluminum

Ambient temperature range

-20…+40 °C

Temperature range at storage

-20…+70 °C

Type of connection

Terminal, 3-Pole (L, N, PE)

Type of protection

IP20

Dimmable

No

Lifespan L70/B50 at 25 °C

25000 h 1)

Number of switching cycles

12500

Minimum rate of recycled material in packaging

80 % 1)

Minimum percentage of recycled content in the product

0 % 1)

Product recyclability

Mostly recyclable product 1)

Packaging recyclability

Mostly recyclable packaging 1)

List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No

Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes

Diameter

410 mm

Replaceable light source

No

List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)

Mounting type

Surface

Mounting location

Ceiling

Protection class

I

Mercury content

0.0 mg

With light source

Yes

Cover material

Polycarbonate (PC)

Luminaire with limited surface temperature, "D sign"

No

Mains frequency

50…60 Hz

Inrush current

3.5 A

Power factor λ

> 0.90

Operating mode

External LED driver

Replaceable light source (EPREL)

Not replaceable

Total luminous flux of contained light sources

3000 lm

Max. number of luminaires per miniature circuit breaker B16

54

Max. number of luminaires per miniature circuit breaker C10

54

Max. number of luminaires per miniature circuit breaker C16

86

Protection class IK (shock resistance)

IK03

Photobiological safety group acc. to EN62471

RG0

Application environment

Indoor

Quantity of precious metals

Contains at least 10 mg

Quantity of rare earths

Contains at least 1 mg

Luminous flux in emergency operation mode

—

Type of emergency light operation

Non-maintained

Luminous flux in maintained operation mode

—
