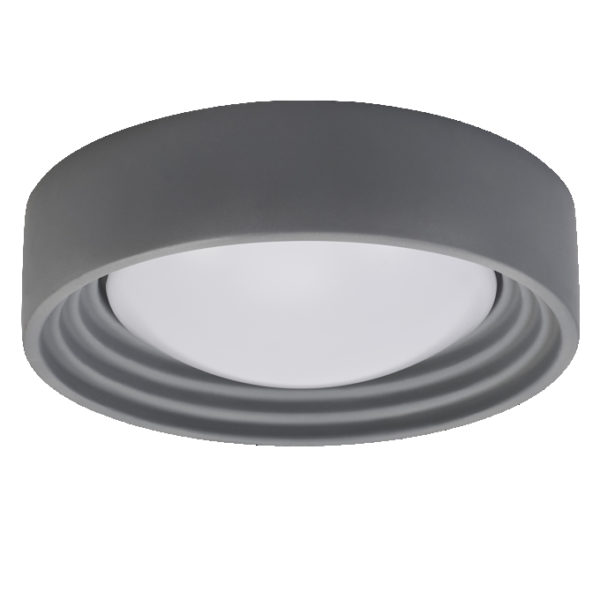

Orbis Concrete 300MM 13W 830 Click Dim Gray

Orbis Concrete 300MM 13W 830 Click Dim Gray

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854446634 Категория:
Product benefits
  • Stylish and modern design
  • Long lifetime thanks to LED technology
Areas of application
  • Indoor
  • Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
  • Type of protection: IP20
  • Lifetime up to 30,000 h
  • Click-DIM version: dimmable in three steps by repeated switching
  • Housing material: concrete
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
GTIN

4099854446634
Nominal wattage

13.00 W
Nominal voltage

220…240 V
Nominal current

80.000 mA
Luminous flux

800 lm
Luminous efficacy

62 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

> 80
Standard deviation of color matching

≤6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

116 °
Height

90.00 mm
Product weight

2520.00 g
Product color

Gray
Housing color

Gray
Body material

Concrete
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

15000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

300.00 mm
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Protection class

II
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current time Th50

26.4 µs
Power factor λ

> 0.5
Total harmonic distortion

< 70 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

182
Max. number of luminaires per miniature circuit breaker C10

114
Max. number of luminaires per miniature circuit breaker C16

182
Photobiological safety group acc. to EN62471

RG0
Type of dimming

3 DIM
Application environment

Indoor
