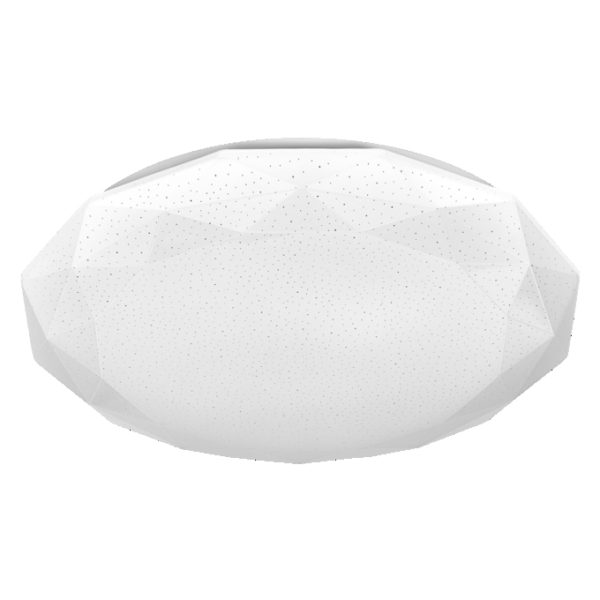

Orbis Diamy 500mm 50W Tunable White Remote White

Orbis Diamy 500mm 50W Tunable White Remote White

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854659089 Категория:
Product benefits
  • Color temperature adjustment for different application needs
  • Set light output from 0-100% for personal comfort
Areas of application
  • Indoor
  • Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
  • Dimmable
  • White adjustment (CCT) from 2700 K…6500 K via remote control
Equipment / Accessories
  • Batteries required for remote control: 2xAAA (not included)
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
GTIN

4099854659089
Nominal wattage

50.00 W
Nominal voltage

220…240 V
Nominal current

240.000 mA
Luminous flux

4000 lm
Luminous efficacy

46 lm/W
Color temperature

2700…6500 K
Light color (designation)

Tunable White
Color rendering index Ra

> 80
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

120 °
Height

78.00 mm
Product weight

940.00 g
Product color

White
Housing color

White
Body material

Steel
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 3-Pole (L, N, PE)
Type of protection

IP20
Dimmable

Yes
Number of switching cycles

12500
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

500.00 mm
Replaceable light source

No
Mounting type

Surface
Mounting location

Ceiling
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polystyrene (PS)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50/60 Hz
Inrush current

8.3 A
Inrush current time Th50

100 µs
Power factor λ

> 0.9
Total harmonic distortion

< 20 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Reference control setting of contained light source (Kelvin)

2700 K
Total luminous flux of contained light sources

6000 lm
Max. number of luminaires per miniature circuit breaker B16

44
Max. number of luminaires per miniature circuit breaker C10

26
Max. number of luminaires per miniature circuit breaker C16

41
Protection class IK (shock resistance)

IK03
