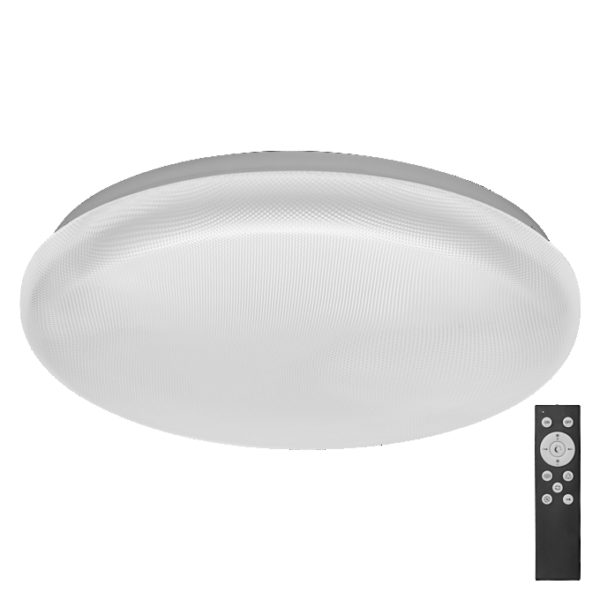

Orbis Dynamic 500 mm CCT RGB DIM Remote Control

Orbis Dynamic 500 mm CCT RGB DIM Remote Control

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075861237 Категория:
Product benefits
  • Set color temperature according to daytime and usage (dining, relaxing, social events…)
  • Dynamic color effect
  • Easy mounting
Areas of application
  • Indoor
  • Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
  • High-power LED
  • Tunable White and RGB
  • Housing material: metal and plastic
  • Type of protection: IP20
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
GTIN

4058075861237
Nominal wattage

36.00 W
Nominal voltage

220…240 V
Nominal current

160.000 mA
Luminous flux

2500 lm
Luminous efficacy

69 lm/W
Color temperature

2700…6500 K
Light color (designation)

R
Color rendering index Ra

≥80
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

120 °
Height

80.00 mm
Product weight

1400.00 g
Product color

White
Housing color

White
Body material

Steel
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 3-Pole (L, N, PE)
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

25000 h 1)
Number of switching cycles

12500
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

500.00 mm
Replaceable light source

No
Mounting type

Surface
Mounting location

Surface
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

0.16 A
Inrush current time Th50

820 µs
Power factor λ

> 0.90
Total harmonic distortion

20 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Reference control setting of contained light source (Kelvin)

4000 K
Total luminous flux of contained light sources

3800 lm
Max. number of luminaires per miniature circuit breaker B16

13
Max. number of luminaires per miniature circuit breaker C10

13
Max. number of luminaires per miniature circuit breaker C16

21
Protection class IK (shock resistance)

IK03
Application environment

Indoor
