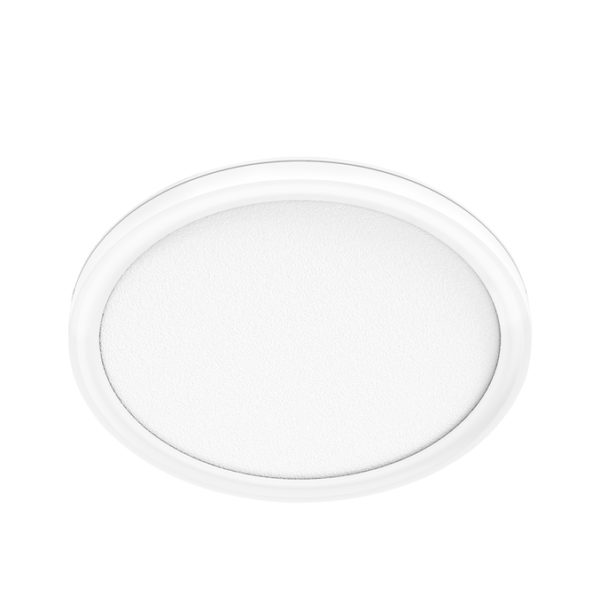

Orbis Easyfix 220 mm 14 W Phase Cut DIM 827 IP54 White

Orbis Easyfix 220 mm 14 W Phase Cut DIM 827 IP54 White

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854844973 Категория:
Product benefits
  • Easy mounting
  • Very homogenous light with a slight backlight effect
  • Type of protection: IP54 (room side) provides additional protection against humidity
Areas of application
  • Living areas (living rooms, dining rooms, bedrooms etc.)
  • Bathrooms
  • Workshops, garages, covered outdoor storage areas
Product features
  • Easy mounting by single person
  • Phase-cut dimmable
  • Type of protection: IP54
  • Color temperature: 2,700 K
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
GTIN

4099854844973
Nominal wattage

14.00 W
Nominal voltage

220…240 V
Nominal current

60.000 mA
Luminous flux

1000 lm
Luminous efficacy

71 lm/W
Color temperature

2700 K
Light color (designation)

Warm White
Color rendering index Ra

> 80
Standard deviation of color matching

< 6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

31.00 mm
Product weight

380.00 g
Product color

White
Housing color

White
Body material

Polyprophylene (PP)
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP54
Dimmable

Yes
Lifespan L70/B50 at 25 °C

25000 h 1)
Number of switching cycles

12500
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

220.00 mm
Replaceable light source

No
Mounting type

Surface
Mounting location

Surface
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polystyrene (PS)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

6.6 A
Inrush current time Th50

168 µs
Power factor λ

≥0.5
Total harmonic distortion

20 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

1500 lm
Max. number of luminaires per miniature circuit breaker B16

63
Max. number of luminaires per miniature circuit breaker C10

53
Max. number of luminaires per miniature circuit breaker C16

84
Protection class IK (shock resistance)

IK03
Type of dimming

PHASE CUT
Application environment

Indoor
