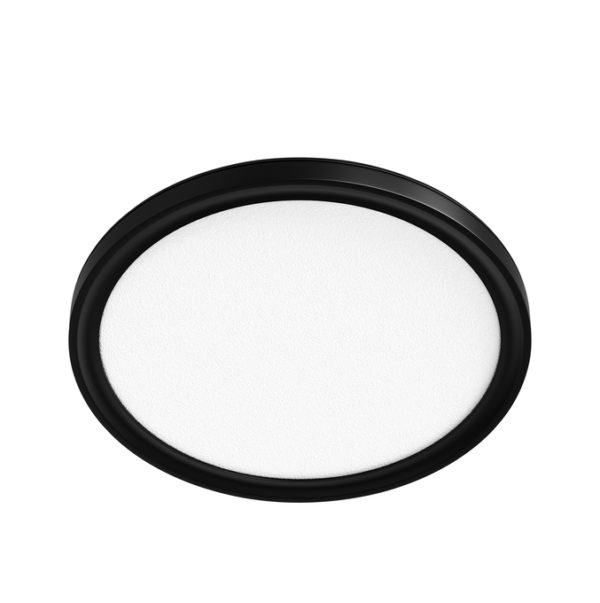

Orbis Easyfix Sensor 220 mm 14 W CCT IP54 Black

Orbis Easyfix Sensor 220 mm 14 W CCT IP54 Black

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854845529 Категория:
Product benefits
  • Easy mounting
  • Very homogenous light with a slight backlight effect
  • Type of protection: IP54 (room side) provides additional protection against humidity
  • Demand based lighting and energy saving thanks to motion and daylight sensor (if applicable)
Areas of application
  • Living areas (living rooms, dining rooms, bedrooms etc.)
  • Bathrooms
  • Workshops, garages, covered outdoor storage areas
Product features
  • Easy mounting by single person
  • Nightlight via integrated daylight/motion microwave sensor
  • Type of protection: IP54
  • Color temperature: 3,000 K, 4,000 K
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
GTIN

4099854845529
Nominal wattage

14.00 W
Nominal voltage

220…240 V
Nominal current

100.000 mA
Luminous flux

950 lm
Luminous efficacy

67 lm/W
Color temperature

3000 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

< 6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

31.00 mm
Product weight

380.00 g
Product color

Black
Housing color

Black
Body material

Polyprophylene (PP)
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP54
Dimmable

No
Lifespan L70/B50 at 25 °C

25000 h 1)
Number of switching cycles

12500
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

220.00 mm
Replaceable light source

No
Mounting type

Surface
Mounting location

Surface
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polystyrene (PS)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

7.60 A
Inrush current time Th50

128 µs
Power factor λ

≥0.5
Total harmonic distortion

180 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

1500 lm
Max. number of luminaires per miniature circuit breaker B16

80
Max. number of luminaires per miniature circuit breaker C10

63
Max. number of luminaires per miniature circuit breaker C16

101
Protection class IK (shock resistance)

IK03
Application environment

Indoor
Type of sensor

Lig
Sensor technology

Microwave
Sensor detection angle

120 °
Detection range of motion sensor

0…3 m
Detection threshold of daylight sensor

0…25 lx
Sensor controlled switching time

30 s
