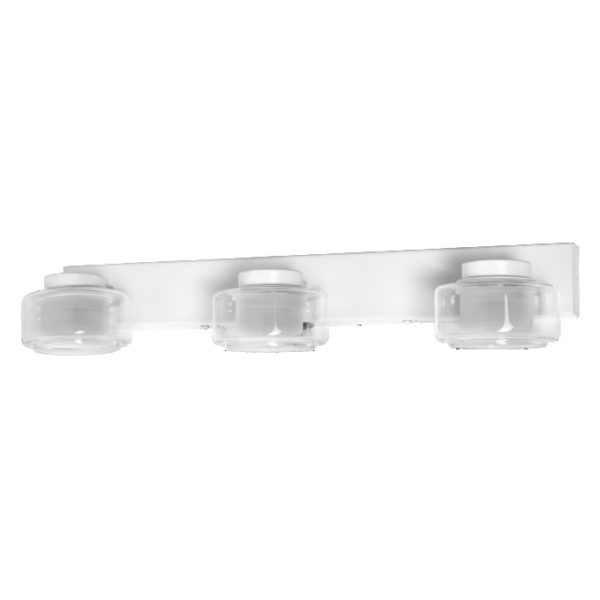

Orbis Flame 3X5.5W Click CCT IP44 White

Orbis Flame 3X5.5W Click CCT IP44 White

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854447921 Категория:
Product benefits
  • Stylish and modern design
  • Easy to install and use
  • Highly versatile due to selectable CCT
  • Long lifetime thanks to LED technology
Areas of application
  • Indoor
  • Living areas (living rooms, dining rooms, bedrooms etc.)
  • Bathrooms (IP44)
Product features
  • Type of protection: IP44
  • Lifetime up to 30,000 h
  • Color temperature: 3,000 K (Warm White) or 4,000 K (Neutral White)
  • Click-CCT version: color temperature adjustable in two steps by repeated switching
  • Housing material: aluminum
  • Glass diffuser
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
GTIN

4099854447921
Nominal wattage

16.50 W
Nominal voltage

220…240 V
Nominal current

104.000 mA
Luminous flux

1050 lm
Luminous efficacy

64 lm/W
Color temperature

3000 … 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

≤6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

115 °
Height

90.00 mm
Product weight

905.00 g
Product color

White
Housing color

White
Body material

Metal, Glass
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP44
Dimmable

No
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

15000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current time Th50

192 µs
Power factor λ

> 0.5
Total harmonic distortion

65 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

1305 lm
Max. number of luminaires per miniature circuit breaker B16

387
Max. number of luminaires per miniature circuit breaker C10

242
Max. number of luminaires per miniature circuit breaker C16

387
Protection class IK (shock resistance)

IK03
Photobiological safety group acc. to EN62471

RG0
Length

500.00 mm
Width

130.00 mm
Application environment

Indoor
