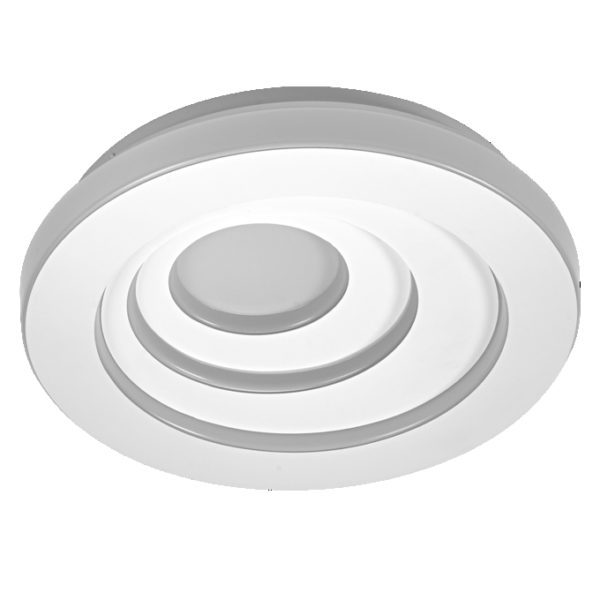

Orbis Iris 3 Layer 390mm 48W 830 White

Orbis Iris 3 Layer 390mm 48W 830 White

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854598395 Категория:
Product benefits
  • Long lifetime thanks to LED technology
  • Excellent price/performance ratio
Areas of application
  • Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
  • Ceiling luminaire with advanced LED technology
  • Color temperature: 3,000 K
  • Lifetime up to 30,000 h
  • Modern design
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
GTIN

4099854598395
Nominal wattage

48.00 W
Nominal voltage

220…240 V
Nominal current

240.000 mA
Luminous flux

1900 lm
Luminous efficacy

40 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

> 80
Standard deviation of color matching

≤6 sdcm
Photobiological safety group acc. to EN62778

RG0
Height

62.00 mm
Product weight

900.00 g
Product color

White
Housing color

White
Body material

Steel
Ambient temperature range

-20…40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 3-Pole (L, N, PE)
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

30000 h 1)
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

390.00 mm
Replaceable light source

No
Mounting type

Surface
Protection class

I
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Power factor λ

> 0.90
Total harmonic distortion

65.7 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

2300
Max. number of luminaires per miniature circuit breaker B16

60
Max. number of luminaires per miniature circuit breaker C10

62
Max. number of luminaires per miniature circuit breaker C16

100
Protection class IK (shock resistance)

IK03
Mounting length

390 mm
Mounting diameter

390 mm
