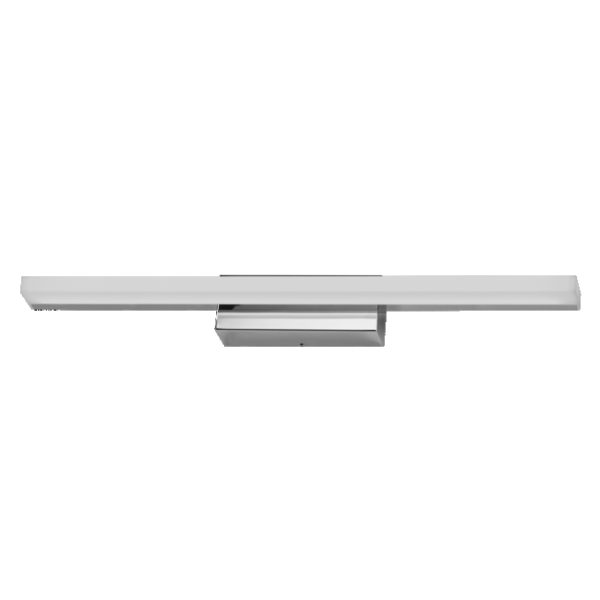

Orbis Mirror 60CM Click CCT DIM IP44 Chrome

Orbis Mirror 60CM Click CCT DIM IP44 Chrome

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854449703 Категория:
Product benefits
  • Easy to install
  • Highly versatile due to selectable CCT
  • Long lifetime thanks to LED technology
Areas of application
  • Indoor
  • Bathrooms (IP44)
Product features
  • Type of protection: IP44
  • Lifetime up to 30,000 h
  • Color temperature: 3,000 K (Warm White) or 4,000 K (Neutral White)
  • Stepless dimming via a touch control
  • Click-CCT version: color temperature adjustable in two steps by repeated switching
  • 2 different lengths available
  • Housing material: aluminum
  • Polycarbonate (PC) diffuser
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
GTIN

4099854449703
Nominal wattage

10.00 W
Nominal voltage

220…240 V
Nominal current

78.000 mA
Luminous flux

950 lm
Luminous efficacy

95 lm/W
Color temperature

3000 … 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

≥80
Standard deviation of color matching

< 6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

57.00 mm
Product weight

400.00 g
Product color

Chrome
Housing color

Chrome
Body material

Acrylic, Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP44
Dimmable

Yes
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

10000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Protection class

II
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current time Th50

200 µs
Power factor λ

> 0.5
Total harmonic distortion

< 60 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Total luminous flux of contained light sources

1180 lm
Max. number of luminaires per miniature circuit breaker B16

38
Max. number of luminaires per miniature circuit breaker C10

32
Max. number of luminaires per miniature circuit breaker C16

51
Photobiological safety group acc. to EN62471

RG0
Length

600.00 mm
Width

88.00 mm
Application environment

Indoor
