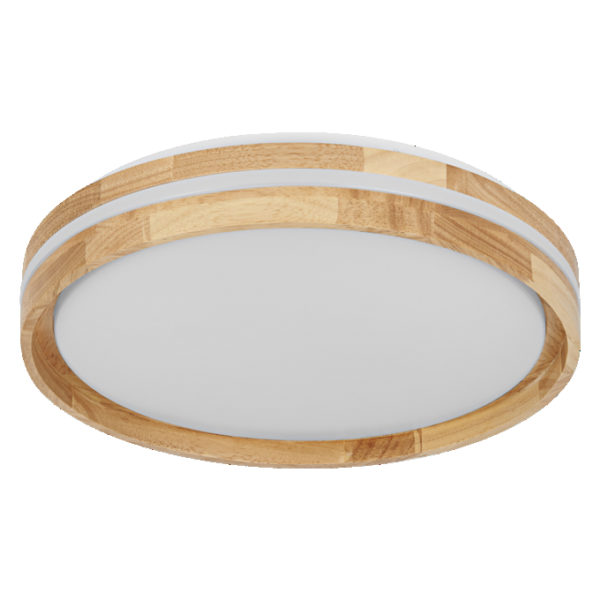

Orbis Noemi Wood 490mm 36W 830 Click DIM

Orbis Noemi Wood 490mm 36W 830 Click DIM

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075863460 Категория:
Product benefits
  • Click-DIM: dimmable in three steps by repeated switching
  • Very homogenous light distribution
  • Frame made of real wood (FSC)
Areas of application
  • Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
  • Ceiling luminaire with advanced LED technology
  • Housing material: wood
  • Dimmable in three steps by repeated switching
  • Color temperature: 3,000 K
  • Memory function of the light setting
  • Type of protection: IP20
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
GTIN

4058075863460
Nominal wattage

36.00 W
Nominal voltage

220…240 V
Nominal current

180.000 mA
Luminous flux

2000 lm
Luminous efficacy

55 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

80
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

85.00 mm
Product weight

1650.00 g
Product color

Wood decor
Housing color

Wood decor
Body material

Metal, wood
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 3-Pole (L, N, PE)
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

490.00 mm
Replaceable light source

No
Mounting type

Surface
Mounting location

Ceiling
Protection class

I
Ball shot safe

No
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

0.17 A
Inrush current time Th50

3.19 µs
Power factor λ

> 0.90
Total harmonic distortion

≤ 30 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

4700 lm
Max. number of luminaires per miniature circuit breaker B16

75
Max. number of luminaires per miniature circuit breaker C10

47
Max. number of luminaires per miniature circuit breaker C16

75
Protection class IK (shock resistance)

IK03
Application environment

Indoor
