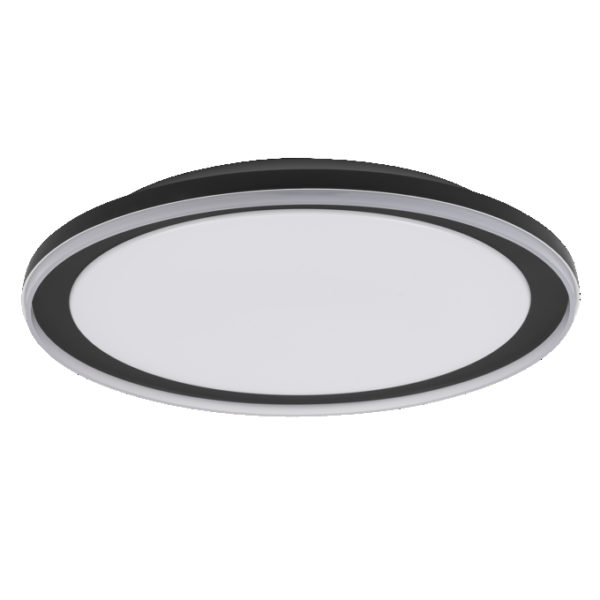

Orbis Pederson 550MM 36W 830 Black

Orbis Pederson 550MM 36W 830 Black

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854449802 Категория:
Product benefits
  • Easy to install and use
  • Long lifetime thanks to LED technology
Areas of application
  • Indoor
  • Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
  • Type of protection: IP20
  • Lifetime up to 30,000 h
  • Color temperature: 3,000 K (Warm White)
  • Robust quality with high-grade plastic
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
GTIN

4099854449802
Nominal wattage

36.00 W
Nominal voltage

220…240 V
Nominal current

160.000 mA
Luminous flux

2500 lm
Luminous efficacy

69 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

≥80
Standard deviation of color matching

≤6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

80.00 mm
Product weight

1650.00 g
Product color

Black
Housing color

Black
Body material

Metal
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 3-Pole (L, N, PE)
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

550.00 mm
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1), N,N-Dimethylformamide
Mounting type

Surface
Protection class

I
Ball shot safe

No
With light source

Yes
Cover material

Plastic
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current time Th50

107 µs
Power factor λ

> 0.90
Total harmonic distortion

< 13 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

4700 lm
Max. number of luminaires per miniature circuit breaker B16

50
Max. number of luminaires per miniature circuit breaker C10

41
Max. number of luminaires per miniature circuit breaker C16

66
Protection class IK (shock resistance)

IK03
Photobiological safety group acc. to EN62471

RG0
Application environment

Indoor
