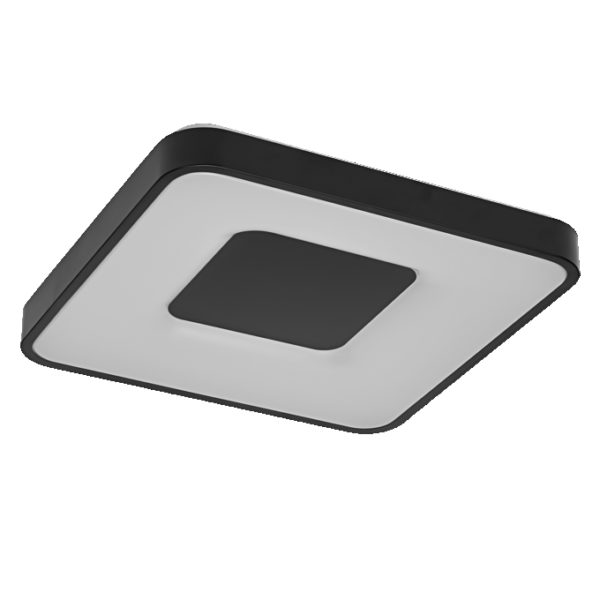

Orbis Piana 485x485mm 36W 830 Click DIM Black

Orbis Piana 485x485mm 36W 830 Click DIM Black

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854625329 Категория:
Product benefits
  • Click dim function by wall switch
Areas of application
  • Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
  • Ceiling luminaire with advanced LED technology
  • Click-DIM version: dimmable in three steps by repeated switching
  • Color temperature: 3,000 K
  • Type of protection: IP20
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
GTIN

4099854625329
Nominal wattage

36.00 W
Nominal voltage

220…240 V
Nominal current

180.000 mA
Luminous flux

2000 lm
Luminous efficacy

56 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

> 80
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG0
Height

65.00 mm
Product weight

1550.00 g
Product color

Black
Housing color

Black
Body material

Metal
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 3-Pole (L, N, PE)
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

15000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Ceiling
Protection class

I
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Poly methyl methacrylate (PMMA), Acrylonitrile butadiene styrene (ABS)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Power factor λ

0.90
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

4700 lm
Protection class IK (shock resistance)

IK03
Length

485.00 mm
Width

485.00 mm
Type of dimming

3 DIM
