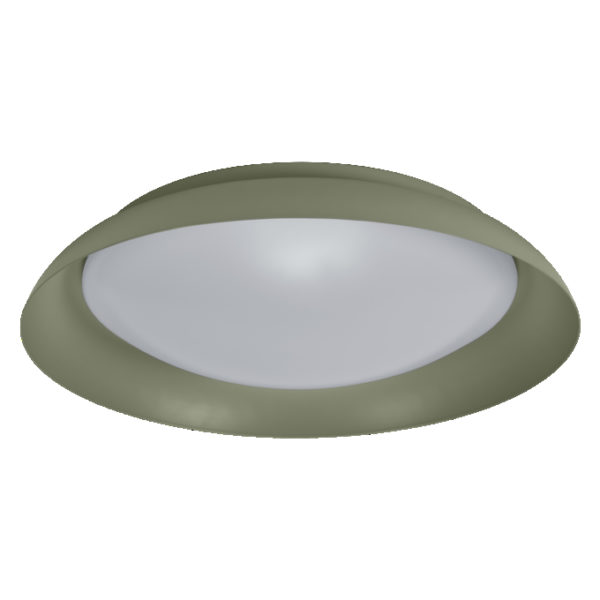

Orbis Plate 430mm 35W 830 Click DIM Green

Orbis Plate 430mm 35W 830 Click DIM Green

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854640162 Категория:
Product benefits
  • Stylish and modern design
  • Easy to install and use
  • Long lifetime thanks to LED technology
Areas of application
  • Indoor
  • Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
  • Type of protection: IP20
  • Lifetime up to 30,000 h
  • Click-DIM version: dimmable in three steps by repeated switching
  • Color temperature: 3,000 K (Warm White)
  • Metal housing, PMMA cover
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
GTIN

4099854640162
Nominal wattage

35.00 W
Nominal voltage

220…240 V
Nominal current

160.000 mA
Luminous flux

1900 lm
Luminous efficacy

57 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

80
Photobiological safety group acc. to EN62778

RG0
Height

100.00 mm
Product weight

1385.00 g
Product color

Green
Housing color

Green
Body material

Steel
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

15000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

430.00 mm
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Power factor λ

0.90
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

4200 lm
Protection class IK (shock resistance)

IK03
Type of dimming

3 DIM
