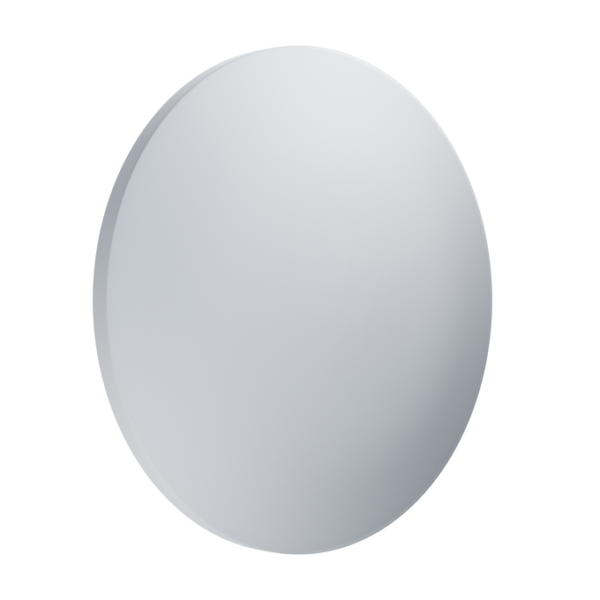

Orbis Pure 400mm 24W

Orbis Pure 400mm 24W

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075651913 Категория:
Product benefits
  • Very homogenous light
  • Easy and quick installation
Areas of application
  • For indoor use only
  • Decorative domestic lighting
  • Ceiling and wall surface mounting
Product features
  • Ceiling luminaire with advanced LED technology
  • Circular light emission
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
GTIN

4058075651913
Nominal wattage

24.00 W
Nominal voltage

220…240 V
Nominal current

175 mA
Luminous flux

1800 lm
Luminous efficacy

85 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

> 80
Standard deviation of color matching

< 6 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

120 °
Height

80.00 mm
Product weight

610.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+70 °C
Type of connection

Terminal, 3-Pole (L, N, PE)
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

25000 h 1)
Number of switching cycles

15000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

400 mm
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Ceiling
Protection class

I
Mercury content

0.0 mg
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

7.9 A
Power factor λ

> 0.5
Operating mode

External LED driver
Total luminous flux of contained light sources

2700 lm
Max. number of luminaires per miniature circuit breaker B16

24
Max. number of luminaires per miniature circuit breaker C10

24
Max. number of luminaires per miniature circuit breaker C16

38
Protection class IK (shock resistance)

IK03
Photobiological safety group acc. to EN62471

RG0
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Luminous flux in emergency operation mode

—
Type of emergency light operation

Non-maintained
Luminous flux in maintained operation mode

—
