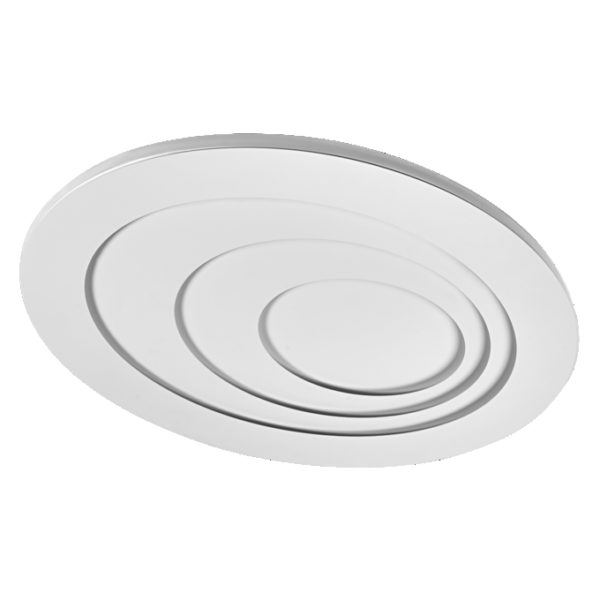

Orbis Spiral Oval 720mm 63W White

Orbis Spiral Oval 720mm 63W White

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854093531 Категория:
Product benefits
  • Very homogenous light
  • Elegant design
Areas of application
  • Indoor applications
  • Kitchens, living rooms, children’s rooms or home offices
Product features
  • Decorative domestic lighting
  • Ceiling luminaire with advanced LED technology
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
GTIN

4099854093531
Nominal wattage

63.00 W
Nominal voltage

220…240 V
Nominal current

262.000 mA
Luminous flux

3800 lm
Luminous efficacy

60 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

> 80
Standard deviation of color matching

≤6 sdcm
Flickering metric (Pst LM)

≤1
Stroboscope effect metric (SVM)

≤0.4
Photobiological safety group acc. to EN62778

RG0
Height

56.00 mm
Product weight

6300.00 g
Product color

White
Housing color

White
Body material

Steel
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screw terminal, 2-Pole (L,N)
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

15000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Protection class

II
Mercury content

0.0 mg
With light source

Yes
Cover material

Silicone
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Power factor λ

≥0.90
Total harmonic distortion

< 20 %
Operating mode

Electronic control gear (ECG)
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

6840 lm
Max. number of luminaires per miniature circuit breaker B16

48
Max. number of luminaires per miniature circuit breaker C16

48
Length

720.00 mm
Width

580.00 mm
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Number of illuminants

empty
