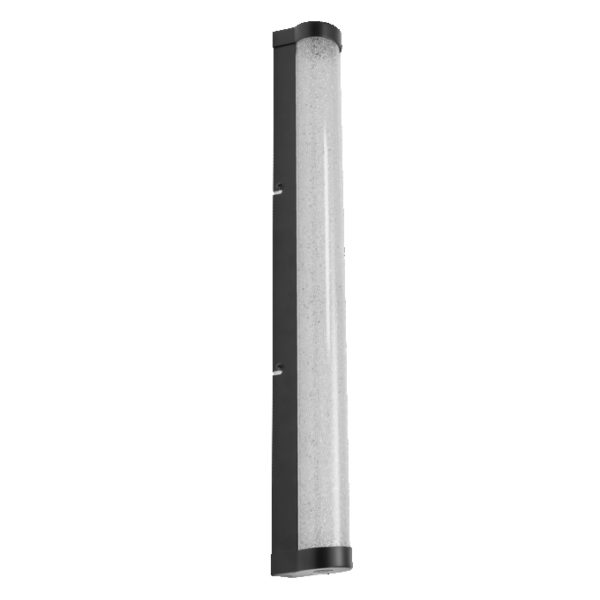

Orbis Tube Bubble Glass 60CM Click CCT DIM IP44 Black

Orbis Tube Bubble Glass 60CM Click CCT DIM IP44 Black

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854450624 Категория:
Product benefits
  • Easy to install and use
  • Highly versatile due to selectable CCT
  • Long lifetime thanks to LED technology
Areas of application
  • Indoor
  • Bathrooms (IP44)
Product features
  • Type of protection: IP44
  • Lifetime up to 30,000 h
  • Color temperature: 3,000 K (Warm White) or 4,000 K (Neutral White)
  • Stepless dimming via a touch control
  • Click-CCT version: color temperature adjustable in two steps by repeated switching
  • 2 different lengths available
  • Housing material: aluminum
  • Polycarbonate (PC) diffuser
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
GTIN

4099854450624
Nominal wattage

12.00 W
Nominal voltage

220…240 V
Nominal current

94.000 mA
Luminous flux

1100 lm
Luminous efficacy

91 lm/W
Color temperature

3000 … 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

≥80
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

54.00 mm
Product weight

670.00 g
Product color

Black
Housing color

Black
Body material

ABS/Polycarbonate (PC)/Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP44
Dimmable

Yes
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

10000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Protection class

II
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current time Th50

200 µs
Power factor λ

> 0.5
Total harmonic distortion

< 60 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

1350 lm
Max. number of luminaires per miniature circuit breaker B16

61
Max. number of luminaires per miniature circuit breaker C10

51
Max. number of luminaires per miniature circuit breaker C16

82
Photobiological safety group acc. to EN62471

RG0
Length

600.00 mm
Width

70.00 mm
Application environment

Indoor
