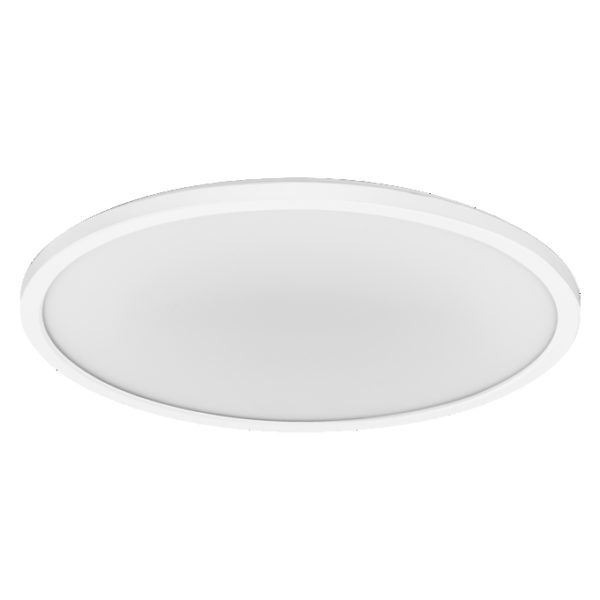

Orbis Ultra Slim Backlight Click-Dim 400mm White 22W

Orbis Ultra Slim Backlight Click-Dim 400mm White 22W

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075752849 Категория:
Product benefits
  • Very slim design
  • Easy and quick installation
Areas of application
  • Indoor applications
  • Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
  • Click-DIM version: dimmable in three steps by repeated switching
  • Dimmable
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
GTIN

4058075752849
Nominal wattage

22.00 W
Nominal voltage

220…240 V
Nominal current

98.000 mA
Luminous flux

1850 lm
Luminous efficacy

84 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

≥80
Standard deviation of color matching

≤6 sdcm
Flickering metric (Pst LM)

—
Stroboscope effect metric (SVM)

—
Photobiological safety group acc. to EN62778

RG0
Beam angle

110 °
Height

27.00 mm
Product weight

1065.00 g
Product color

White
Body material

Plastic
Ambient temperature range

-20…+40 °C
Type of connection

Terminal, 2-pin
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

400.00 mm
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

18 A
Inrush current time Th50

100 µs
Power factor λ

> 0.90
Total harmonic distortion

< 40 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Total luminous flux of contained light sources

2720 lm
Max. number of luminaires per miniature circuit breaker B16

41
Max. number of luminaires per miniature circuit breaker C16

53
Photobiological safety group acc. to EN62471

RG0
Type of dimming

3 DIM
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
UGR

< 25
