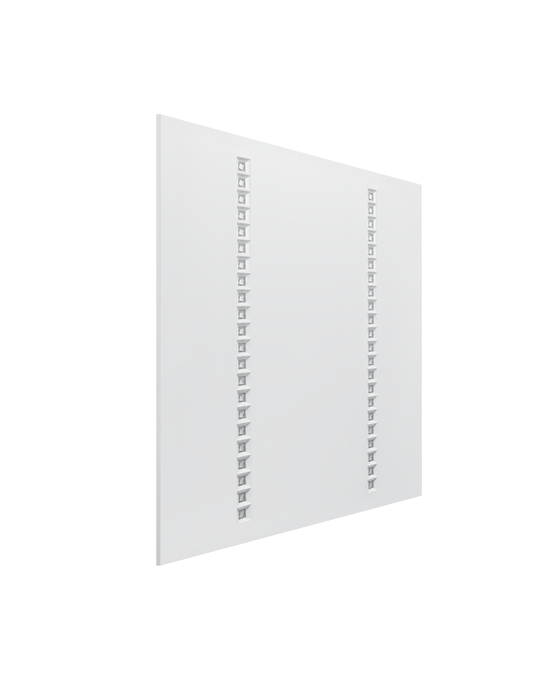

PANEL INDV 600 33W 4000 K ZBVR

PANEL INDV 600 33W 4000 K ZBVR

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075521841 Категория:
Product benefits
  • Suitable luminaire for VIVARES and other Zigbee 3.0 Light Management Systems
  • Homogenous light distribution and reduced glare thanks to the IndiviLED® optics
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • Robust structure with IK08
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Corridors
  • Offices
  • Conference rooms
  • Reception areas
  • Foyers
  • Elevators
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
  • IoT-ready luminaire with Zigbee 3.0 technology
  • Each LED with individual lens and reflector for UGR < 16 and homogenous light distribution
  • Lifetime (L80/B50): up to 50,000 h (at 25 °C)
  • Metal housing, polycarbonate (PC) lenses and reflectors
  • Luminous flux: up to 4,000 lm
  • Luminous efficacy: up to 120 lm/W
  • Initial color consistency: 3 SDCM
  • Glow Wire Test according to IEC 60695-2-12: 850 °C
Equipment / Accessories
  • Accessories for several mounting options available
  • Security rope for luminaire included
  • External control gear included
References / Links
  • For Guarantee see
GTIN

4058075521841
Nominal wattage

33.00 W
Nominal voltage

220…240 V
Nominal current

180.000 mA
Luminous flux

4000 lm
Luminous efficacy

120 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

≥80
Standard deviation of color matching

3 sdcm
Flickering metric (Pst LM)

—
Stroboscope effect metric (SVM)

—
Photobiological safety group acc. to EN62778

RG1
Beam angle

70 °
Height

13.00 mm
Product weight

3500.00 g
Product color

White
Housing color

White
Body material

Steel
Ambient temperature range

-20…+45 °C
Type of connection

Terminal, 3-Pole (L, N, PE)
Type of protection

IP40/IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

80000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface/Recessed
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

30 A
Inrush current time Th50

200 µs
Power factor λ

≥0.90
Total harmonic distortion

≤ 10 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

11
Max. number of luminaires per miniature circuit breaker C10

10
Max. number of luminaires per miniature circuit breaker C16

16
Protection class IK (shock resistance)

IK08
Length

595.00 mm
Width

595.00 mm
Mounting width

575 mm
Mounting length

575 mm
Type of dimming

ZIGBEE
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Luminous intensity

—
Added function

VIVARES
Lifespan L80/B10 at 25 °C

60000 h 1)
Light emitting surface material

Polycarbonate (PC)
Mounting depth

50,0 mm
UGR

< 16
Output current

750 mA
Lifespan L90/B10 at 25 °C

35000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9003
ECG - Output ripple current

≤ 5 %
IoT ready

Support of DALI data type PART 251, 252, 253 1)
