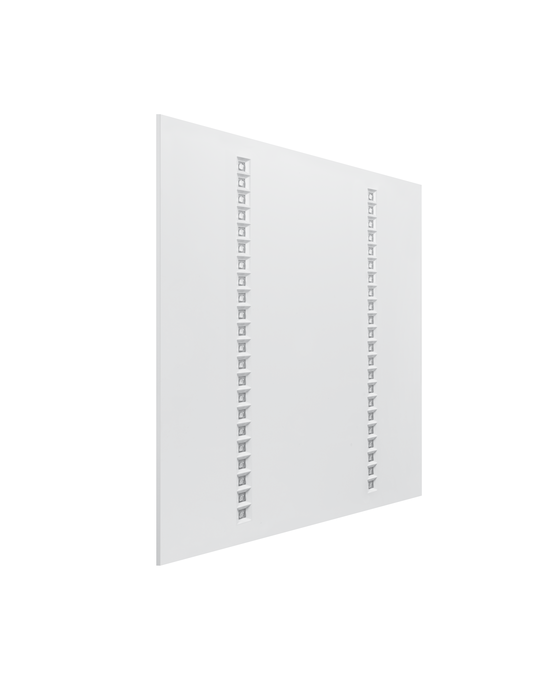

PANEL INDV EM 600 33 W 3000K

PANEL INDV EM 600 33 W 3000K

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075201293 Категория:
Product benefits
  • Homogenous light distribution and reduced glare thanks to the IndiviLED® optics
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • Robust structure with IK08
  • Low flicker light thanks to special electronic control gear
  • 3 years guarantee
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Buildings requiring up to 3 h emergency light operation
  • Reception areas, foyers, corridors, elevators
  • Offices, conference rooms
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
  • Each LED with individual lens and reflector for UGR < 16 and homogenous light distribution
  • Luminaire suitable for normal lighting and emergency lighting
  • Certified according to European norms (EN 60598-1:2015; EN 60598-2-22:2014)
  • Self-contained luminaires
  • Emergency lighting function: battery discharge time of 3 h
  • Function test of emergency lighting: automatic (AT)
  • Battery technology: LiFePO4
  • Metal housing, polycarbonate (PC) lenses and reflectors
  • Luminous efficacy: up to 120 lm/W
  • Initial color consistency: 3 SDCM
  • Glow Wire Test according to IEC 60695-2-12: 850 °C
Equipment / Accessories
  • Optional mounting clips available
  • Security rope for luminaire included
  • External control gear included
  • Control LED with a retainer for recessed installation included
References / Links
  • For Guarantee see
GTIN

4058075201293
Nominal wattage

33.00 W
Nominal voltage

220…240 V
Nominal current

180.000 mA
Luminous flux

3800 lm
Luminous efficacy

115 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

≥80
Standard deviation of color matching

3 sdcm
Flickering metric (Pst LM)

—
Stroboscope effect metric (SVM)

—
Photobiological safety group acc. to EN62778

RG1
Beam angle

70 °
Height

13.00 mm
Product weight

3700.00 g
Product color

White
Housing color

White
Body material

Steel
Ambient temperature range

+5…+40 °C
Temperature range at storage

5…+35 °C
Type of connection

Screw terminal, 2-POLE (N, L. L switchable)
Type of protection

IP40
Dimmable

No
Lifespan L70/B50 at 25 °C

80000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Recessed
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

Automatic
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50/60 Hz
Inrush current

36.4 A
Inrush current time Th50

80 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

58
Max. number of luminaires per miniature circuit breaker C10

36
Max. number of luminaires per miniature circuit breaker C16

58
Protection class IK (shock resistance)

IK08
Length

595.00 mm
Width

595.00 mm
Mounting width

575 mm
Mounting length

575 mm
Application environment

Indoor
Battery size [GMS]

Others
Type of Battery

LiFePO4
Nominal voltage of battery

3.2 V
Nominal capacity of battery

4500 mAh
Luminous intensity

—
Lifespan L80/B10 at 25 °C

60000 h 1)
Battery charging time

< 24 h
Light emitting surface material

Polycarbonate (PC)
Luminous flux in emergency operation mode

450 lm
Battery life in emergency operation mode

3 h
Mounting depth

50,0 mm
UGR

< 16
Lifespan L90/B10 at 25 °C

35000 h
Type of emergency light operation

Maintain
Luminous flux in maintained operation mode

3800 lm
Integrated test switch

No
Low flicker

Yes
RAL Color (most similar)

RAL 9016
Wattage in emergency operation mode

3,0 W
Area of emergency application

Anti-panic lighti
Wattage in maintained operation mode

33 W
