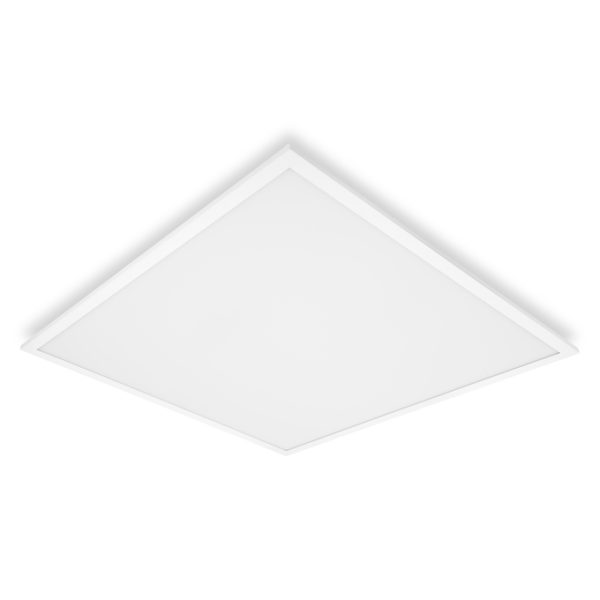

PL CMFT 600 P 36W 930 940 U19 CPS CRI90

PL CMFT 600 P 36W 930 940 U19 CPS CRI90

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075694460 Категория:
Product benefits
  • High performance with CRI90 and up to 122 lm/W
  • Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver
  • High color consistency with SDCM 3
  • Good glare reduction (UGR < 19)
  • Through-wiring possible with included connector box
  • External driver for extended flexibility and easy installation
  • Low flicker light thanks to special electronic control gear
  • Extended services such as energy monitoring and remote maintenance possible with DALI versions
  • 5 years guarantee
Areas of application
  • Direct replacement for recessed luminaires with fluorescent lamps
  • Offices, conference rooms
  • Reception areas, foyers, corridors, elevators
  • Schools, public buildings
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
  • Extruded aluminum frame
  • Polystyrene diffuser
  • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
  • Luminaire versions with IoT-ready DALI-2 driver available
  • Lifetime (L80/B10): up to 60,000 h (at 25 °C)
Equipment / Accessories
  • Accessories for several mounting options available
  • Connector box with 5-pole terminal included
  • Security rope for luminaire included
  • Security brackets included
  • External control gear included with switches to select CCT and power during installation
References / Links
  • For Guarantee see
GTIN

4058075694460
Nominal wattage

36 W / 29.5 W 1)
Nominal voltage

220…240 V
Nominal current

165.000 mA
Luminous flux

4200 lm / 4000 lm / 3600 lm / 3400 lm 1)
Luminous efficacy

122 lm/W / 118 lm/W / 115 lm/W / 112 lm/W 1)
Color temperature

3000 K / 4000 K 2)
Light color (designation)

Warm Whi
Color rendering index Ra

≥90
Standard deviation of color matching

3 sdcm
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

90 °
Height

32.00 mm
Product weight

1950.00 g
Product color

White
Housing color

White
Body material

Steel
Ambient temperature range

-10…+50 °C
Type of connection

Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection

IP40~IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface/Recessed
Mounting location

Ceili
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polystyrene (PS)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

12 A
Inrush current time Th50

200 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

18
Max. number of luminaires per miniature circuit breaker C10

16
Max. number of luminaires per miniature circuit breaker C16

25
Protection class IK (shock resistance)

IK02
Photobiological safety group acc. to EN62471

RG0
Length

595.00 mm
Width

595.00 mm
Mounting width

575 mm
Mounting length

575 mm
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Luminous intensity

— cd
Added function

MULTI SELECT
Lifespan L80/B10 at 25 °C

60000 h 1)
Mounting depth

80,0 mm
UGR

< 19
Output current

1100 mA
Lifespan L90/B10 at 25 °C

35000 h
Low flicker

Yes
ECG - Output ripple current

10 %
