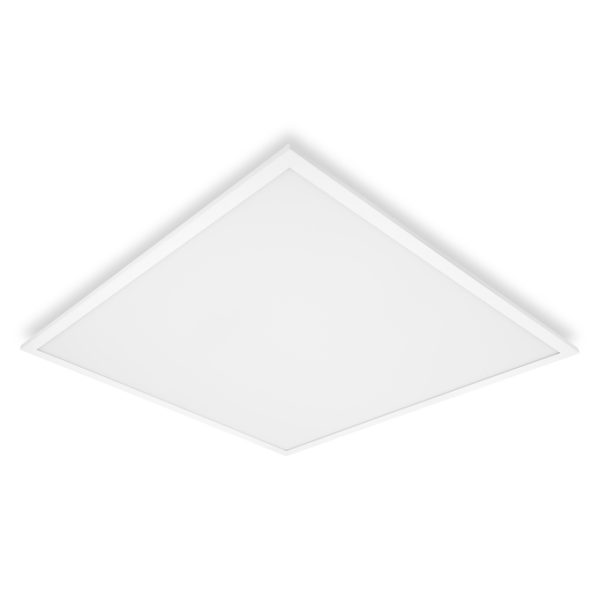

PL CMFT 600 P 36W 930 940 U19 DALIVR CS CRI90

PL CMFT 600 P 36W 930 940 U19 DALIVR CS CRI90

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075694507 Категория:
Product benefits
  • Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
  • High performance with CRI90 and up to 118 lm/W
  • Highly versatile due to selectable CCT (CCT Select — CS)
  • High color consistency with SDCM 3
  • Good glare reduction (UGR < 19)
  • Through-wiring possible with included connector box
  • External driver for extended flexibility and easy installation
  • Low flicker light thanks to special electronic control gear
  • Extended services such as energy monitoring and remote maintenance possible with DALI versions
  • 5 years guarantee
Areas of application
  • Direct replacement for recessed luminaires with fluorescent lamps
  • Offices, conference rooms
  • Reception areas, foyers, corridors, elevators
  • Schools, public buildings
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
  • IoT-ready luminaire with DALI-2 technology
  • Extruded aluminum frame
  • Polystyrene diffuser
  • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
  • Lifetime (L80/B10): up to 60,000 h (at 25 °C)
Equipment / Accessories
  • Accessories for several mounting options available
  • Separate switch preinstalled to choose preferred CCT during installation
  • Connector box with 5-pole terminal included
  • Security rope for luminaire included
  • Security brackets included
  • External control gear included
References / Links
  • For Guarantee see
GTIN

4058075694507
Nominal wattage

36.00 W 1)
Nominal voltage

220…240 V
Nominal current

165.000 mA
Luminous flux

4200 lm 1)
Luminous efficacy

118 lm/W 1)
Color temperature

3000 K / 4000 K 1)
Light color (designation)

Warm Whi
Color rendering index Ra

≥90
Standard deviation of color matching

3 sdcm
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

90 °
Height

32.00 mm
Product weight

2050.00 g
Product color

White
Housing color

White
Body material

Steel
Ambient temperature range

-10…+50 °C
Type of connection

Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection

IP40~IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface/Recessed
Mounting location

Ceili
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polystyrene (PS)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

0/50/60 Hz
Inrush current

12 A
Inrush current time Th50

200 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

20
Max. number of luminaires per miniature circuit breaker C10

21
Max. number of luminaires per miniature circuit breaker C16

33
Protection class IK (shock resistance)

IK02
Photobiological safety group acc. to EN62471

RG0
Length

595.00 mm
Width

595.00 mm
Mounting width

575 mm
Mounting length

575 mm
Type of dimming

DALI
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Luminous intensity

— cd
Added function

MULTI SELE
Lifespan L80/B10 at 25 °C

60000 h 1)
Luminous flux in emergency operation mode

360 lm
Mounting depth

80,0 mm
UGR

< 19
Output current

1100 mA
Lifespan L90/B10 at 25 °C

35000 h
Low flicker

Yes
Wattage in emergency operation mode

3,0 W
ECG - Output ripple current

10 %
Type of Emergency Lighting (EL)

EL certified driver (0Hz / DC operation) for central battery operation included
IoT ready

Support of DALI data type PART 251, 252, 253 1)
