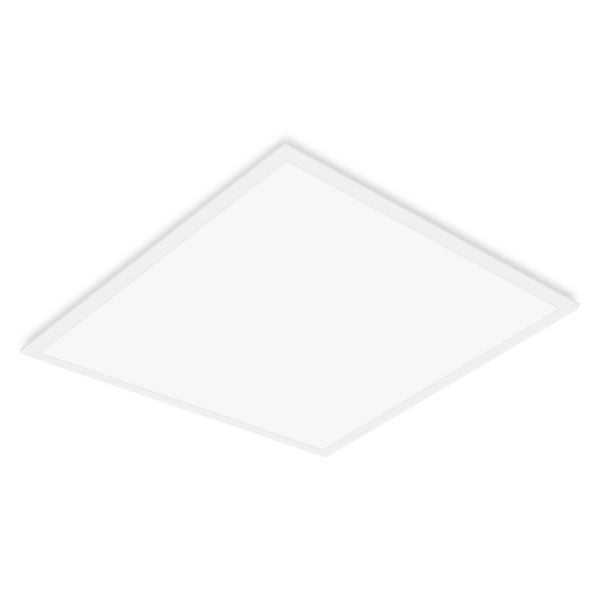

PL COMP 600 TPA V 28W 840 U19

PL COMP 600 TPA V 28W 840 U19

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075849488 Категория:
Product benefits
  • Good glare reduction (UGR < 19)
  • Low flicker light thanks to special electronic control gear
  • Energy savings thanks to system efficacy of up to 120 lm/W
  • External driver for extended flexibility and easy installation
Areas of application
  • Areas which require UK building regulation rating TP(a)
  • Direct replacement for luminaires with fluorescent lamps
  • Offices, conference rooms
  • Reception areas, foyers, corridors, elevators
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
  • Extruded aluminum frame
  • Polystyrene diffuser — TP(a) rated (UK)
  • Lifetime (L80/B10): up to 50,000 h (at 25 °C)
Equipment / Accessories
  • Accessories for several mounting options available
  • External control gear included
  • Preinstalled connector box for easy wiring and optional through-wiring
  • Suitable for use with separate Emergency Conversion Box
  • Separate DALI driver available
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
References / Links
  • For Guarantee see
GTIN

4058075849488
Nominal wattage

28.00 W
Nominal voltage

220…240 V
Nominal current

130.000 mA
Luminous flux

3360 lm
Luminous efficacy

120 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

5 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

90 °
Height

34.00 mm
Product weight

2000.00 g
Product color

White
Housing color

White
Body material

Steel
Ambient temperature range

-10…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal, 2-Pole (L, N)
Type of protection

IP40/IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

75000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Recessed/Suspended/Surface
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polystyrene (PS)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50/60 Hz
Inrush current

25 A
Inrush current time Th50

150 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

24
Max. number of luminaires per miniature circuit breaker C10

19
Max. number of luminaires per miniature circuit breaker C16

30
Protection class IK (shock resistance)

IK02
Length

595.00 mm
Width

595.00 mm
Mounting width

575 mm
Mounting length

575 mm
Application environment

Indoor
Lifespan L80/B10 at 25 °C

35000 h 1)
Adjustable

No
Light emitting surface material

Polystyrene
Luminous flux in emergency operation mode

370 lm / 620 lm
Mounting depth

50 mm
UGR

< 19
Output current

750 mA
ECG - Length

100 mm
ECG - Width

38 mm
ECG - Height

25 mm
Lifespan L90/B10 at 25 °C

20000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9003
Wattage in emergency operation mode

2.3 W / 4 W
ECG - Output ripple current

< 5 %
Type of Emergency Lighting (EL)

Optional EL unit (battery and controller) for decentral operation available separately
Recommended control gear

DR DALI-P-42/220-240/1A0
