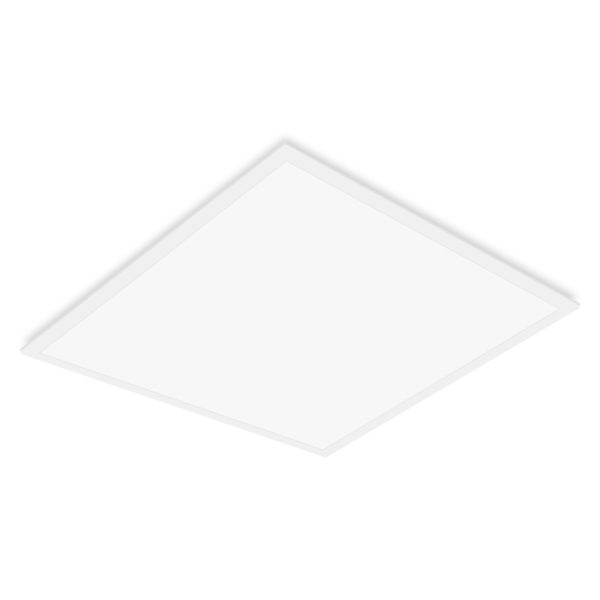

PL COMP 600 V 33W 840 U19 DALI

PL COMP 600 V 33W 840 U19 DALI

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854017261 Категория:
Product benefits
  • Good glare reduction (UGR < 19)
  • Low flicker light thanks to special electronic control gear
  • External driver for extended flexibility and easy installation
  • Suitable for emergency lighting
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Offices, conference rooms
  • Reception areas, foyers, corridors, elevators
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
  • Suitable for central battery emergency installations acc. to EN 60598-2-22
  • Push DIM function for dimming and switching directly on a pushbutton
  • Extruded aluminum frame
  • Polystyrene diffuser
  • Lifetime (L80/B10): up to 50,000 h (at 25 °C)
Equipment / Accessories
  • Accessories for several mounting options available
  • Security rope for luminaire included
  • Security brackets preinstalled
  • External control gear included
  • Suitable for use with separate Emergency Conversion Box
  • Connector box with 5-pole terminal for through-wiring separately available for cable cross sections up to 2.5 mm²
References / Links
  • For Guarantee see
GTIN

4099854017261
Nominal wattage

33.00 W
Nominal voltage

220…240 V
Nominal current

190.000 mA
Luminous flux

3630 lm
Luminous efficacy

110 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

≤5 sdcm
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

90 °
Height

32.00 mm
Product weight

1790.00 g
Product color

White
Housing color

White
Body material

Steel
Ambient temperature range

-10…+45 °C
Temperature range at storage

-20…+70 °C
Type of connection

Screwless terminal, 4-Pole (L,N, DA+, DA-)
Type of protection

IP40/IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

70000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Additional info can be provided per individual request
Mounting type

Recessed/Suspended/Surface
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polystyrene (PS)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

0/50/60 Hz
Inrush current

1.7 A
Inrush current time Th50

52 µs
Power factor λ

> 0.90
Total harmonic distortion

< 10 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

83
Max. number of luminaires per miniature circuit breaker C10

52
Max. number of luminaires per miniature circuit breaker C16

83
Protection class IK (shock resistance)

IK02
Length

595.00 mm
Width

595.00 mm
Mounting width

575 mm
Mounting length

575 mm
Type of dimming

DALI-2
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Added function

VIVARES
Lifespan L80/B10 at 25 °C

50000 h 1)
Adjustable

No
Light emitting surface material

Polystyrene
Luminous flux in emergency operation mode

400 lm
Mounting depth

50,0 mm
UGR

< 19
Output current

700 mA
ECG - Length

168 mm
ECG - Width

49.9 mm
ECG - Height

32 mm
Lifespan L90/B10 at 25 °C

40000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9003
Wattage in emergency operation mode

5 W
ECG - Output ripple current

< 7 %
Type of Emergency Lighting (EL)

Optional EL unit (battery and controller) for decentral operation available separate
IoT ready

Support of DALI data type PART 251, 252, 253 1)
Recommended control gear

LEDV DR DALI-P-44/220-240/10
EPD

LEDV-00008-V01.01-EN
