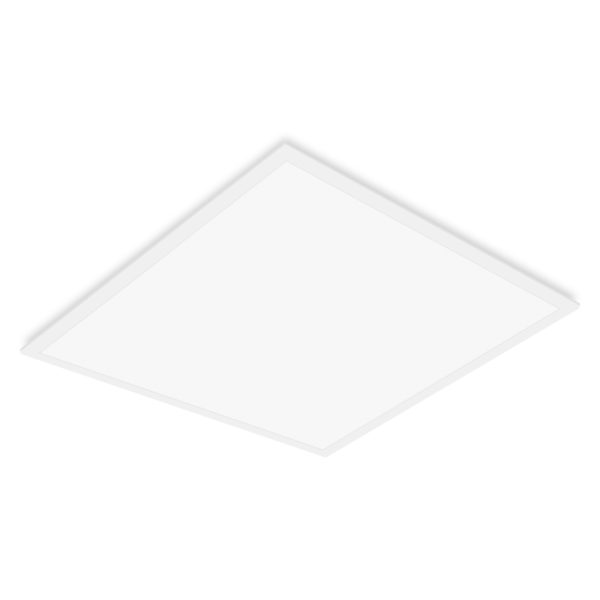

PL COMP 625 V 30W ML 84065 U19

Product benefits

• Highly versatile due to selectable lumen levels and light colors (Multi Select)
• Energy savings thanks to high system efficacy: up to 140 lm/W
• High lumen output with up to 4200 lm (3 levels selectable)
• High color consistency with SDCM 3
• Versions with reduced glare (U19) for office applications and CRI 90 versions available
• Through-wiring possible
• Decentral emergency lighting possible with separately available LEDVANCE Emergency Conversion Box

Areas of application

• Suitable for recessed ceiling systems with grid size of 625 x 625 mm
• Direct replacement for recessed luminaires with fluorescent lamps
• Offices, conference rooms
• Reception areas, foyers, corridors, elevators

Product features

• Extruded aluminum frame, metal housing
• Polystyrene diffuser
• Lifetime (L80/B10): up to 75,000 h (at 25 °C)
• 3-pole terminal block, cable cross section up to 3 x 1.5 mm²
• Type of protection: IP50 (panel luminaire), IP20 (driver)

Equipment / Accessories

• Accessories for several mounting options available
• Security rope for luminaire included
• Security brackets preinstalled
• External control gear included
• Suitable for use with separate Emergency Conversion Box
• Replacement driver separately available

Safety advice

• All electrical connections must be made by a qualified person.
• The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
• Caution, risk of electric shock.
• The luminaires are not suitable for covering with thermally insulated material.

References / Links
