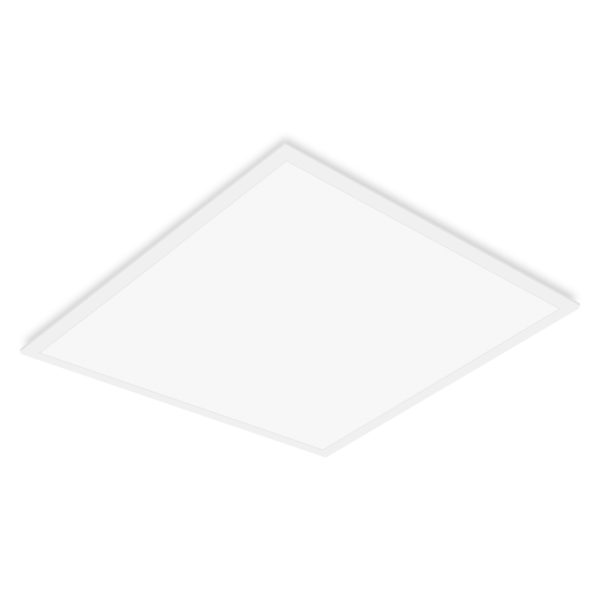

PL COMP 625 V 33W 840

PL COMP 625 V 33W 840

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854017407 Категория:
Product benefits
  • Low flicker light thanks to special electronic control gear
  • Energy savings thanks to system efficacy of up to 110 lm/W
  • External driver with an optional 3-pole through-wiring feature
  • Versions with DALI ECG available
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Offices, conference rooms
  • Reception areas, foyers, corridors, elevators
  • Suitable for recessed ceiling systems with grid size of 625 x 625 mm
Product features
  • Extruded aluminum frame
  • Polystyrene diffuser
  • Lifetime (L80/B10): up to 50,000 h (at 25 °C)
Equipment / Accessories
  • Accessories for several mounting options available
  • Security brackets preinstalled
  • External control gear included
  • Suitable for use with separate Emergency Conversion Box
References / Links
  • For Guarantee see
GTIN

4099854017407
Nominal wattage

33.00 W
Nominal voltage

220…240 V
Nominal current

150.000 mA
Luminous flux

3630 lm
Luminous efficacy

110 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

≤5 sdcm
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

32.00 mm
Product weight

1600.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-10…+45 °C
Temperature range at storage

-20…+70 °C
Type of connection

Screwless terminal, 2-Pole (L, N)
Type of protection

IP40/IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

70000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Additional info can be provided per individual request
Replaceable light source

No
Mounting type

Recessed/Suspended/Surface
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polystyrene (PS)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

12.3 A
Inrush current time Th50

52 µs
Power factor λ

> 0.90
Total harmonic distortion

< 10 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

61
Max. number of luminaires per miniature circuit breaker C10

48
Max. number of luminaires per miniature circuit breaker C16

78
Protection class IK (shock resistance)

IK02
Length

620.00 mm
Width

620.00 mm
Mounting width

600,0 mm
Mounting length

600,0 mm
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Lifespan L80/B10 at 25 °C

50000 h 1)
Adjustable

No
Light emitting surface material

Polystyrene
Mounting depth

50,0 mm
Output current

700 mA
ECG - Length

116.7 mm
ECG - Width

49.9 mm
ECG - Height

27 mm
Lifespan L90/B10 at 25 °C

40000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9003
ECG - Output ripple current

< 7 %
Type of Emergency Lighting (EL)

Optional EL unit (battery and controller) for decentral operation available separately
Recommended control gear

LEDV DR DALI-P-44/220-240/1050
EPD

LEDV-00008-V01.01-EN
