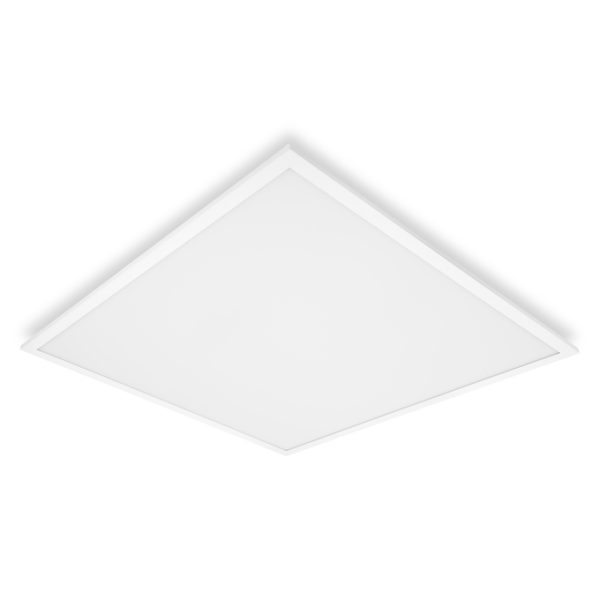

PL FLEX 600 DALI S 30W 840

PL FLEX 600 DALI S 30W 840

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854276606 Категория:
Product benefits
  • Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
  • High lumen output with up to 4860 lm
  • Energy savings thanks to high system efficacy: up to 160 lm/W
  • High color consistency with SDCM 3
  • External driver for extended flexibility and easy installation
  • Low flicker light thanks to special electronic control gear
  • Tool-free electrical connection due to push button connector
  • Through-wiring possible with included connector box
  • Decentral emergency lighting possible with separately available LEDVANCE Emergency Conversion Box
  • Extended services such as energy monitoring and remote maintenance possible with DALI versions
  • 7 years guarantee
Areas of application
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
  • Direct replacement for recessed luminaires with fluorescent lamps
  • Offices, conference rooms
  • Reception areas, foyers, corridors, elevators
Product features
  • IoT-ready luminaire with DALI-2 technology
  • Suitable for central battery emergency installations acc. to EN 60598-2-22
  • Lifetime (L80/B10): 100,000 h (at 25 °C), (L90/B10): 50,000 h (at 25 °C)
  • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
  • Extruded aluminum frame, metal housing
  • Polystyrene diffuser
Equipment / Accessories
  • Accessories for several mounting options available
  • Connector box with 5-pole terminal included
  • Security rope for luminaire included
  • Security brackets preinstalled
  • External control gear included
  • Suitable for use with separate Emergency Conversion Box
  • Serviceable luminaire: Upgrades and replacements available
References / Links
  • For Guarantee see
GTIN

4099854276606
Nominal wattage

30.00 W
Nominal voltage

220…240 V
Nominal current

140.000 mA
Luminous flux

4860 lm
Luminous efficacy

160 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

≤3 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

110 °
Height

32.00 mm
Product weight

1500.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-10…+50 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection

IP40/IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Additional info can be provided per individual request
Mounting type

Recessed/Suspended/Surface
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polystyrene (PS)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

0/50/60 Hz
Inrush current

4.4 A
Inrush current time Th50

440 µs
Power factor λ

> 0.90
Total harmonic distortion

< 15 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

By the end consumer
Max. number of luminaires per miniature circuit breaker B16

40
Max. number of luminaires per miniature circuit breaker C10

41
Max. number of luminaires per miniature circuit breaker C16

66
Protection class IK (shock resistance)

IK02
Length

595.00 mm
Width

595.00 mm
Mounting width

595.00 mm
Mounting length

595.00 mm
Type of dimming

DALI-2
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Added function

VIVARES
Lifespan L80/B10 at 25 °C

100000 h 1)
Adjustable

No
Luminous flux in emergency operation mode

700 lm
Mounting depth

50 mm
Output current

700 mA
ECG - Length

110 mm
ECG - Width

75 mm
ECG - Height

25 mm
Lifespan L90/B10 at 25 °C

50000 h
Low flicker

Yes
Wattage in emergency operation mode

6 W
ECG - Output ripple current

< 5 %
Type of Emergency Lighting (EL)

Optional EL unit (battery and controller) for decentral operation available separate
IoT ready

Support of DALI data type PART 251, 252, 253 1)
Recommended control gear

OTi DALI 50/220…240/1A4 NFC
