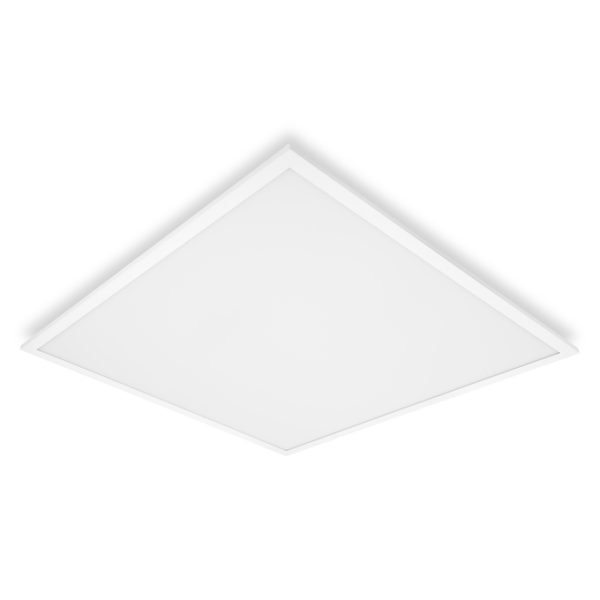

PL FLEX 625 ZB S 32W 840 U19

PL FLEX 625 ZB S 32W 840 U19

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854514470 Категория:
Product benefits
  • Suitable luminaire for DIRECT EASY / VIVARES Zigbee and other Zigbee 3.0 Light Management Systems
  • High lumen output with up to 5220 lm
  • Energy savings thanks to high system efficacy: up to 160 lm/W
  • High color consistency with SDCM 3
  • Good glare reduction (UGR < 19)
  • External driver for extended flexibility and easy installation
  • Low flicker light thanks to special electronic control gear
  • Tool-free electrical connection due to push button connector
  • Through-wiring possible with included connector box
  • Decentral emergency lighting possible with separately available LEDVANCE Emergency Conversion Box
  • Extended services such as energy monitoring and remote maintenance possible with Zigbee versions
Areas of application
  • Suitable for recessed ceiling systems with grid size of 625 x 625 mm
  • Direct replacement for recessed luminaires with fluorescent lamps
  • Offices, conference rooms
  • Reception areas, foyers, corridors, elevators
Product features
  • IoT-ready luminaire with Zigbee 3.0 technology
  • Suitable for central battery emergency installations acc. to EN 60598-2-22
  • Lifetime (L80/B10): 100,000 h (at 25 °C), (L90/B10): 50,000 h (at 25 °C)
  • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
  • Extruded aluminum frame, metal housing
  • Polystyrene diffuser
Equipment / Accessories
  • Accessories for several mounting options available
  • Connector box with 5-pole terminal included
  • Security brackets preinstalled
  • External control gear included
  • Serviceable luminaire: Upgrades and replacements available
Safety advice
  • All electrical connections must be made by a qualified person.
  • If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
References / Links
  • For Guarantee see
GTIN

4099854514470
Nominal wattage

32.00 W
Nominal voltage

220…240 V
Nominal current

150.000 mA
Luminous flux

5220 lm
Luminous efficacy

160 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

3 sdcm
Flickering metric (Pst LM)

< 1
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

90 °
Height

34.00 mm
Product weight

2050.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-10…+50 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal, 3-POLE (L, N, PE)
Type of protection

IP40/IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

Yes
Mounting type

Recessed/Suspended/Surface
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polystyrene (PS)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

0/50/60 Hz
Inrush current

5.24 A
Inrush current time Th50

47.2 µs
Power factor λ

0.95
Total harmonic distortion

< 7 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

By the end consumer
Max. number of luminaires per miniature circuit breaker B16

55
Max. number of luminaires per miniature circuit breaker C10

34
Max. number of luminaires per miniature circuit breaker C16

55
Protection class IK (shock resistance)

IK02
Length

620 mm
Width

620.00 mm
Mounting width

600 mm
Mounting length

600 mm
Application environment

Indoor
Added function

VIVARES
Lifespan L80/B10 at 25 °C

100000 h 1)
Adjustable

No
Luminous flux in emergency operation mode

750 lm
Mounting depth

50 mm
UGR

< 19
Output current

750 mA
ECG - Length

119,0 mm
ECG - Width

45 mm
ECG - Height

25 mm
Lifespan L90/B10 at 25 °C

59000 h
Surge capability (L-N)

1000 V
Dimming range

1…100 %
Low flicker

Yes
RAL Color (most similar)

RAL 9003
Wattage in emergency operation mode

6 W
ECG - Output ripple current

3.0 %
Type of Emergency Lighting (EL)

EL certified driver (0Hz / DC operation) for central battery operation included
IoT ready

Support of Zigbee Data Clusters: 0x0302 (Luminaire Asset Management), 0x0702 (Smart Energy: Metering), 0x0B04 (Electrical Measurement) 1)
