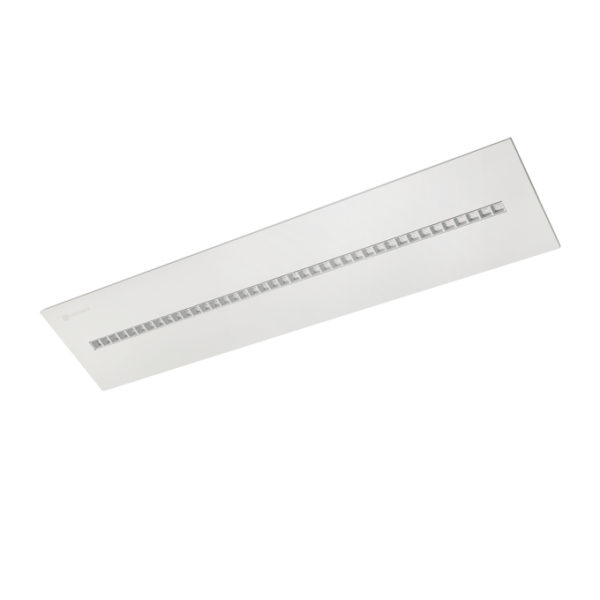

PL INV 1200 DA P 38W ML 930 U19 WT

PL INV 1200 DA P 38W ML 930 U19 WT

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854736322 Категория:
Product benefits
  • Easy upgradeability of light source and driver (EVERLOOP design)
  • Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
  • High performance with CRI 90 and up to 140 lm/W
  • Highly versatile due to selectable lumen levels (Multi Select)
  • High color consistency with SDCM 3
  • External driver for extended flexibility and easy installation
  • Through-wiring possible with included connector box
  • Multiple mounting options thanks to different accessories
  • Suitable for central battery emergency installations acc. to EN 60598-2-22
Areas of application
  • Direct replacement for recessed luminaires with fluorescent lamps
  • Offices, education, public buildings
  • Conference rooms
  • Suitable for recessed ceiling systems with grid size of 1200 x 300 mm
Product features
  • Low-carbon steel housing, available in white and black color
  • Includes EVERLOOP: Convenient replacement of light source and LED driver
  • IoT-ready luminaire with DALI-2 technology
  • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
  • Lifetime (L80/B10): 70,000 h (at 25 °C)
Equipment / Accessories
  • Accessories for several mounting options available
  • Connector box with 5-pole terminal included
  • Security rope for luminaire included
  • External control gear included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
  • The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
References / Links
  • For Guarantee see
GTIN

4099854736322
Nominal wattage

38 W / 34 W / 29 W / 24 W
Nominal voltage

220…240 V
Nominal current

170mA/145mA/125mA/105 mA
Luminous flux

4900 lm / 4350 lm / 3850 lm / 3150 lm
Luminous efficacy

129 lm/W / 128 lm/W / 133 lm/W / 131 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

≥90
Standard deviation of color matching

≤3 sdcm
Flickering metric (Pst LM)

≤1
Stroboscope effect metric (SVM)

≤ 0.4
Photobiological safety group acc. to EN62778

RG1
Beam angle

90 °
Height

22.00 mm
Product weight

3040.00 g
Product color

White
Housing color

White
Body material

Steel
Ambient temperature range

-20…+45 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)(3147-75-9), Lead (7439-92-1)
Mounting type

Recessed/Suspended/Surface
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Steel
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

0/50/60 Hz
Inrush current

5.32 A
Inrush current time Th50

34 µs
Power factor λ

> 0.9
Total harmonic distortion

≤ 20 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Only by an expert
Max. number of luminaires per miniature circuit breaker B16

47
Max. number of luminaires per miniature circuit breaker C10

29
Max. number of luminaires per miniature circuit breaker C16

47
Protection class IK (shock resistance)

IK06
Photobiological safety group acc. to EN62471

RG1
Length

1195.00 mm
Width

295.00 mm
Mounting width

275 mm
Mounting length

1175 mm
Type of dimming

DALI-2
Application environment

Indoor
Product remark

Available from March 2026
Added function

MULTI SELE
Lifespan L80/B10 at 25 °C

70000 h 1)
Adjustable

No
Light emitting surface material

Polycarbonate (PC)
Luminous flux in emergency operation mode

840 lm
Mounting depth

50 mm
UGR

< 19
Output current

800mA / 700mA / 600mA / 500 mA
ECG - Length

164 mm
ECG - Width

45 mm
ECG - Height

25 mm
Lifespan L90/B10 at 25 °C

35000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9003
Wattage in emergency operation mode

5.5 W
ECG - Output ripple current

≤ 3 %
Type of Emergency Lighting (EL)

EL certified driver (0Hz / DC operation) for central battery operation included
IoT ready

Support of DALI data type PART 251, 252, 253 1)
Recommended control gear

DR DALI-P-42/220-240/1A0
EPD

LEDV-00079-V01.01-EN
38 W

129 lm/W
24 W

131 lm/W
29 W

133 lm/W
34 W

128 lm/W
