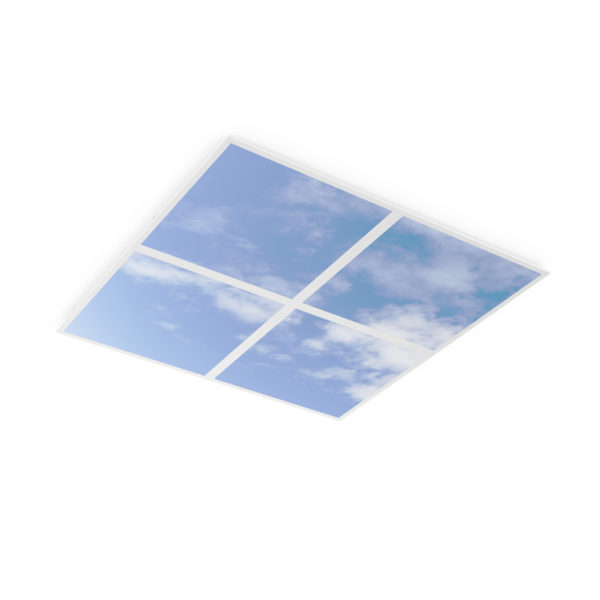

PL PRINT SKY DA 625 V 26W SET4

PL PRINT SKY DA 625 V 26W SET4

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075861916 Категория:
Product benefits
  • Brings natural looking sky into buildings
  • Luminous ceiling creating an atmosphere that comforts people
  • Available as a single panel, set of 4, set of 6 and set of 9
  • Other images, customized patterns and logos on request
  • Through-wiring possible
Areas of application
  • Suitable for recessed ceiling systems with grid size of 625 x 625 mm
  • Lounges, reception areas, foyers, corridors, elevators
  • Decorative illumination
Product features
  • Extruded aluminum frame, metal housing
  • Color coated polystyrene diffuser
  • UGR ≤ 22 with a 120° beam angle
  • Lifetime (L80/B10): up to 75,000 h (at 25 °C)
  • External DALI-2 driver included
  • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
Equipment / Accessories
  • Accessories for several mounting options available
  • Security brackets preinstalled
  • External control gear included
Safety advice
  • The individual pattern can have influence on the perceived CRI, color temperature and lumen value.
References / Links
  • For Guarantee see
GTIN

4058075861916
Nominal wattage

104 W
Nominal voltage

220…240 V
Nominal current

120 mA
Luminous flux

14560 lm 1)
Luminous efficacy

140 lm/W 1)
Color rendering index Ra

> 80 1)
Standard deviation of color matching

< 3 sdcm 1)
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

110 °
Height

34.0 mm
Product weight

8000.00 g
Product color

White
Body material

Aluminum
Ambient temperature range

-10…+45 °C
Temperature range at storage

-20…+70 °C
Type of connection

Screwless terminal, 5-Pole
Type of protection

IP50/IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Recessed
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polystyrene (PS)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50/60 Hz
Inrush current

5.32 A
Inrush current time Th50

34 µs
Power factor λ

0.90
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Max. number of luminaires per miniature circuit breaker B16

47
Max. number of luminaires per miniature circuit breaker C10

29
Max. number of luminaires per miniature circuit breaker C16

47
Protection class IK (shock resistance)

IK02
Photobiological safety group acc. to EN62471

RG0
Length

620 mm 1)
Width

620 mm 1)
Mounting width

600 mm
Mounting length

600 mm
Added function

VIVARES
Lifespan L80/B10 at 25 °C

75000 h 1)
Adjustable

No
Light emitting surface material

Polystyrene
Mounting depth

50 mm
Output current

700 mA
ECG - Length

105.00 mm
ECG - Width

45.00 mm
ECG - Height

25.00 mm
Lifespan L90/B10 at 25 °C

35000 h
Dimming range

1…100 %
Low flicker

Yes
RAL Color (most similar)

RAL 9003
ECG - Output ripple current

0.05 %
IoT ready

Support of DALI data type PART 251, 252, 253 1)
Recommended control gear

DR DALI-P-42/220-240/1A0
