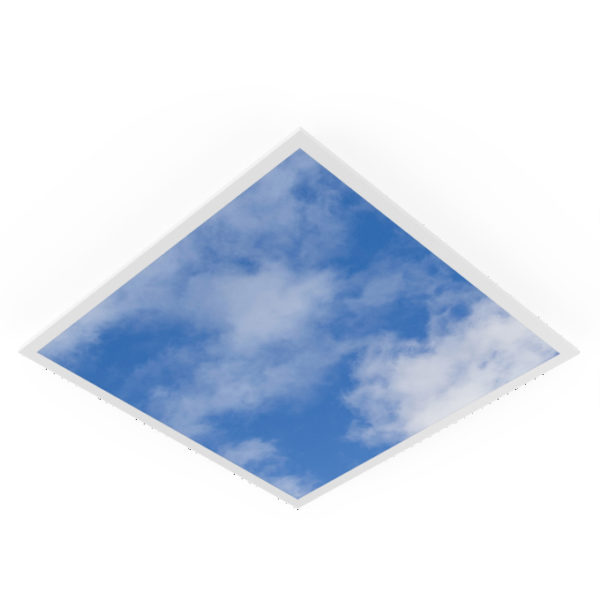

PL PRINT SKY1 DA 600 V 33W

PL PRINT SKY1 DA 600 V 33W

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854534744 Категория:
Product benefits
  • Brings natural looking sky into buildings
  • Luminous ceiling creating an atmosphere that comforts people
  • Available as a single panel, set of 4, set of 6 and set of 9
  • Other images, customized patterns and logos on request
Areas of application
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
  • Lounges, reception areas, foyers, corridors, elevators
  • Decorative illumination
Product features
  • Extruded aluminum frame, metal housing
  • Color coated polystyrene diffuser
  • UGR ≤ 22 with a 120° beam angle
  • Lifetime (L80/B10): up to 50,000 h (at 25 °C)
  • External DALI-2 driver included
Equipment / Accessories
  • Accessories for several mounting options available
  • Security rope for luminaire included
  • Security brackets preinstalled
  • External control gear included
Safety advice
  • The individual pattern can have influence on the perceived CRI, color temperature and lumen value.
References / Links
  • For Guarantee see
GTIN

4099854534744
Nominal wattage

33.00 W
Nominal voltage

220…240 V
Nominal current

190.000 mA
Luminous flux

3630 lm 1)
Luminous efficacy

110 lm/W 1)
Color rendering index Ra

80 1)
Standard deviation of color matching

> 5 sdcm 1)
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

32.00 mm
Product weight

1543.00 g
Product color

White
Housing color

White
Body material

Steel
Ambient temperature range

-10…+45 °C
Temperature range at storage

-20…+70 °C
Type of connection

Push connector, 2-Pole (L/N)
Type of protection

IP40/IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

70000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Recessed/Suspended/Surface
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polystyrene (PS)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

0/50/60 Hz
Inrush current

1.7 A
Inrush current time Th50

52 µs
Power factor λ

> 0.90
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

83
Max. number of luminaires per miniature circuit breaker C10

52
Max. number of luminaires per miniature circuit breaker C16

83
Protection class IK (shock resistance)

IK02
Length

595.00 mm
Width

595.00 mm
Mounting width

575 mm
Mounting length

575 mm
Type of dimming

DALI-2
Application environment

Indoor
Added function

VIVARES
Lifespan L80/B10 at 25 °C

50000 h 1)
Adjustable

No
Light emitting surface material

Polystyrene
Mounting depth

50,0 mm
Output current

700 mA
ECG - Length

168 mm
ECG - Width

44 mm
ECG - Height

32 mm
Lifespan L90/B10 at 25 °C

40000 h
Low flicker

Yes
ECG - Output ripple current

< 7 %
IoT ready

Support of DALI data type PART 251, 252, 253 1)
