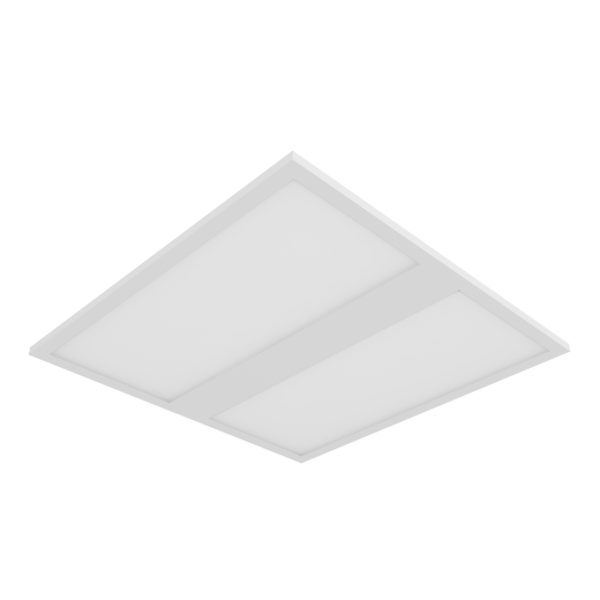

PL PROT 600 ZB P 36W 840

PL PROT 600 ZB P 36W 840

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854514555 Категория:
Product benefits
  • Suitable luminaire for DIRECT EASY / VIVARES Zigbee and other Zigbee 3.0 Light Management Systems
  • Suitable for use in applications where a higher IP protection is needed
  • High lumen output with up to 5040 lm
  • Tool-free electrical connection due to push button connector
  • Through-wiring possible with included connector box
  • Energy savings thanks to high system efficacy: up to 140 lm/W
  • High color consistency with SDCM 3
  • Extended services such as energy monitoring and remote maintenance possible with Zigbee versions
  • External driver for extended flexibility and easy installation
  • Easy cleanable frontside thanks to the smooth PMMA surface of the diffuser
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
  • Hospitals
  • Laboratories
  • Kitchens, canteens, workspaces
Product features
  • IoT-ready luminaire with Zigbee 3.0 technology
  • Type of protection: IP54 (frontside), IP20 (backside)
  • Steel housing with notch in the backside for the driver to allow maximum height of 34 mm
  • PMMA diffuser
  • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
  • Lifetime (L90/B10): 50,000 h (at 25° C)
  • Panel can be customized with optical sensors on individual request
Equipment / Accessories
  • Accessories for several mounting options available
  • Connector box with 5-pole terminal included
  • Security rope for luminaire included
  • Security brackets preinstalled
  • External control gear included
  • Special mounting frame with an overall height of only 50 mm available separately
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
References / Links
  • For Guarantee see
GTIN

4099854514555
Nominal wattage

36.00 W
Nominal voltage

220…240 V
Nominal current

165.000 mA
Luminous flux

5040 lm
Luminous efficacy

140 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

3 sdcm
Flickering metric (Pst LM)

< 1
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

34.00 mm
Product weight

2100.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-10…+50 °C
Temperature range at storage

-20…+70 °C
Type of connection

Screwless terminal, 3-POLE (L, N, PE)
Type of protection

IP54/IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Recessed/Suspended/Surface
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

0/50/60 Hz
Inrush current

60 A
Inrush current time Th50

2.72 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

12
Max. number of luminaires per miniature circuit breaker C10

10
Max. number of luminaires per miniature circuit breaker C16

16
Protection class IK (shock resistance)

IK02
Length

595.00 mm
Width

595.00 mm
Mounting width

575 mm
Mounting length

575 mm
Application environment

Indoor
Added function

VIVARES
Lifespan L80/B10 at 25 °C

70000 h 1)
Adjustable

No
Light emitting surface material

Polymethylmethacrylate (PMMA)
Luminous flux in emergency operation mode

720 lm
Mounting depth

50 mm
UGR

< 22
Output current

600…1200 mA
ECG - Length

119,0 mm
ECG - Width

45 mm
ECG - Height

25 mm
Lifespan L90/B10 at 25 °C

50000 h
Surge capability (L-N)

1000 V
Dimming range

1…100 %
Low flicker

Yes
RAL Color (most similar)

RAL 9003
Wattage in emergency operation mode

6.5 W
ECG - Output ripple current

< 5 %
Type of Emergency Lighting (EL)

EL certified driver (0Hz / DC operation) for central battery operation included
IoT ready

Support of Zigbee Data Clusters: 0x0302 (Luminaire Asset Management), 0x0702 (Smart Energy: Metering), 0x0B04 (Electrical Measurement) 1)
