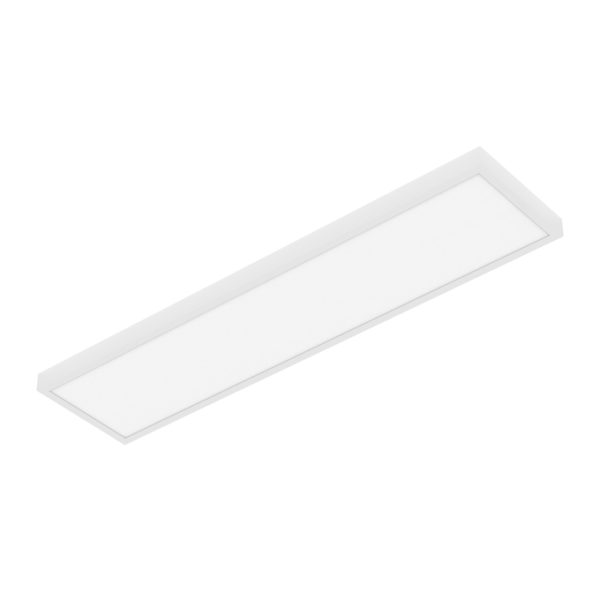

PL SF 1574 ZB V 48W 93040 U19

PL SF 1574 ZB V 48W 93040 U19

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854731709 Категория:
Product benefits
  • Suitable luminaire for DIRECT EASY / VIVARES Zigbee and other Zigbee 3.0 Light Management Systems
  • Rectangular refurbishment luminaire for replacing standard T5 and T8 surface-mounted luminaires
  • Enlarged luminaire dimensions to cover mounting marks of existing luminaire
  • Highly versatile due to selectable light colors (Multi Select)
  • Through-wiring possible with included connector box
  • Easy mounting by single person
  • Extended services such as energy monitoring and remote maintenance possible
  • Versions with reduced glare (U19) for office applications available
Areas of application
  • Offices, conference rooms
  • Reception areas, foyers, corridors
Product features
  • IoT-ready luminaire with Zigbee 3.0 technology
  • High color rendering (CRI > 90) with up to 130 lm/W
  • Robust one-piece metal frame
  • Polystyrene diffuser
  • High color consistency: ≤ 3 SDCM
  • Suitable for central battery emergency installations acc. to EN 60598-2-22
Equipment / Accessories
  • Suspension kit available as separate accessory
Safety advice
  • All electrical connections must be made by a qualified person.
  • The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
References / Links
  • For Guarantee see
GTIN

4099854731709
Nominal wattage

48.00 W
Nominal voltage

220…240 V
Nominal current

210.000 mA
Luminous flux

6240 lm 1)
Luminous efficacy

130 lm/W
Color temperature

3000 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 90
Standard deviation of color matching

3 sdcm
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

90 °
Height

69.00 mm
Product weight

5015.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-10…+40 °C
Temperature range at storage

-20…+70 °C
Type of connection

Screwless terminal, 3-POLE (L, N, PE)
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface/Suspended
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polystyrene (PS)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

0/50/60 Hz
Inrush current

0.27 A
Inrush current time Th50

34 µs
Power factor λ

> 0.90
Total harmonic distortion

< 15 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Reference control setting of contained light source (Kelvin)

4000 K
Max. number of luminaires per miniature circuit breaker B16

47
Max. number of luminaires per miniature circuit breaker C10

29
Max. number of luminaires per miniature circuit breaker C16

47
Protection class IK (shock resistance)

IK02
Length

1574.00 mm
Width

373.00 mm
Type of dimming

ZIGBEE
Application environment

Indoor
Product remark

Available from March 2026
Added function

MULTI SELE
Lifespan L80/B10 at 25 °C

75000 h 1)
Adjustable

No
Light emitting surface material

Polystyrene
Luminous flux in emergency operation mode

650 lm
UGR

< 19
Output current

1050 mA
Lifespan L90/B10 at 25 °C

50000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9003
Wattage in emergency operation mode

5 W
ECG - Output ripple current

< 5 %
Type of Emergency Lighting (EL)

Optional EL unit (battery and controller) for decentral operation available separate
IoT ready

Support of Zigbee Data Clusters: 0x0302 (Luminaire Asset Management), 0x0702 (Smart Energy: Metering), 0x0B04 (Electrical Measurement) 1)
Recommended control gear

DR ZB NF P 45W 220-240V 1A2
EPD

LEDV-00078-V01.01-EN
48 W

125 lm/W
