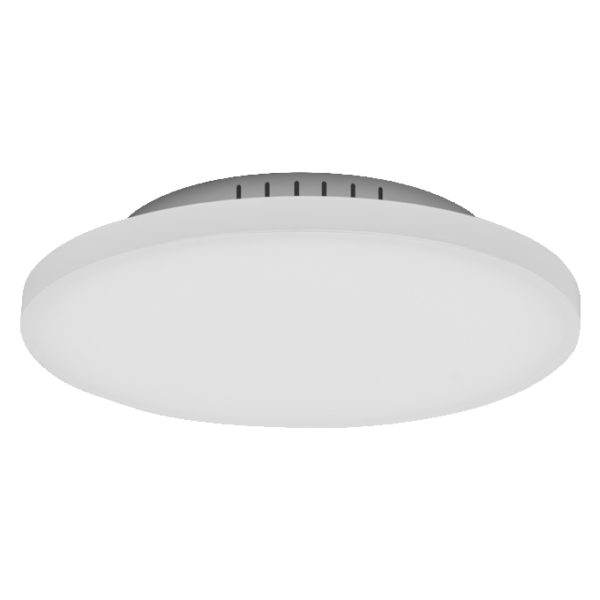

Planon Frameless Round 300mm 20W 830 White

Planon Frameless Round 300mm 20W 830 White

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854452635 Категория:
Product benefits
  • Homogenous light distribution
  • Easy and quick installation
  • Slim and sleek design
Areas of application
  • Indoor applications
  • Decorative domestic lighting
  • Wall and ceiling surface mounting
  • Offices
  • Living rooms
Product features
  • Ceiling luminaire with advanced LED technology
  • Aluminum housing, frosted PMMA diffuser
  • Color temperature: 3,000 K
  • Available in square, rectangular and round form
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
GTIN

4099854452635
Nominal wattage

19.00 W
Nominal voltage

220…240 V
Nominal current

100.000 mA
Luminous flux

1750 lm
Luminous efficacy

88 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

> 80
Standard deviation of color matching

≤6 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

120 °
Height

56.00 mm
Product weight

1260.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

25000 h 1)
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

300.00 mm
Replaceable light source

No
Mounting type

Surface
Protection class

II
Ball shot safe

No
With light source

Yes
Cover material

Polystyrene (PS)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current time Th50

380 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Total luminous flux of contained light sources

2400 lm
Max. number of luminaires per miniature circuit breaker B16

23
Max. number of luminaires per miniature circuit breaker C10

23
Max. number of luminaires per miniature circuit breaker C16

36
Protection class IK (shock resistance)

IK02
Application environment

Indoor
