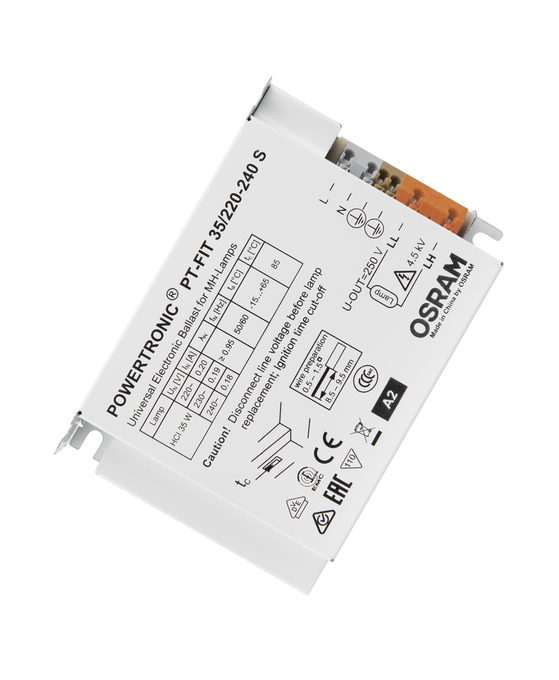

Name: PT-FIT 35/220…240 S - led-sklad.ru
SKU: 4008321386625
Price: 2100.00 RUB
Availability: InStock

Product benefits

Optimized cost/benefit factor
Compact dimensions and low weight for small luminaire designs
Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL)

Areas of application

Shop lighting
Health and fitness areas (in luminaires with protection class IP66 or higher)
Effect and accent lighting

Product features

Energy Efficiency Index EEI: A2
Supply voltage: 220…240 V
Line frequency: 50…60 Hz
RI suppression: to EN 55015/CISPR 15
Safety: to EN 61347-2-12
Line harmonics according to EN 61000-3-2
Immunity according to EN 61547

Safety advice

Thermal characteristics Ballast losses and lamp heat radiation can lead to heat accumulation in a completely closed case. Therefore it is necessary to ensure that the temperature at the measuring point t_c of the ECG does not exceed the maximum value.
Attention! For safety reasons disconnect the device before replacing the lamp!

GTIN	4008321386625
Nominal wattage	43.00 W
Nominal voltage	220…240 V
Height	30.00 mm
Product weight	245.00 g
Body material	Metal
Ambient temperature range	-15…+65 °C
Temperature range at storage	-40…+85 °C
Type of protection	IP20
Dimmable	No
Standards	Acc. to EN 61347-2-
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
Protection class	I
Mains frequency	50/60 Hz
Inrush current	30 A 1)
Power factor λ	0.95 2)
Length	110.00 mm
Width	75.00 mm
Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Energy efficiency class	A2
Type of current	AC
Maximum temperature at tc test point	85 °C
Operating frequency	0.200…0.240 kHz
ECG lifetime	30000 h 1)
Suitable for emergency lighting	No
Cable cross-section, output side	0,5…1,0 mm
Permitted rel. humidity during operation	5…85 % 1)
Approval marks – approval	V
Cable cross-section, input side	0,5…1,0 mm
Wire preparation length, input side	8.5…9.5 mm
Mounting hole spacing, length	99,0 mm
Overheating protection	Power reduction and switch off at T > 85 °C at the tc point
Wire preparation length, output side	8.5…9.5 mm
Max. cable length to lamp/LED module	1.5 m
Nominal output voltage	250 V
Input voltage AC	198…264 V
ECG efficiency	92 %
Casing material	Metal
Max.housing temperature in case of fault	110 °C
Suitable for fixtures with prot. class	I
U-OUT (working voltage)	250 V
Max. ECG no. on circuit breaker 10 A (B)	15 3)
Max. ECG no. on circuit breaker 16 A (B)	26 3)
EEI – Energy Label	A2
