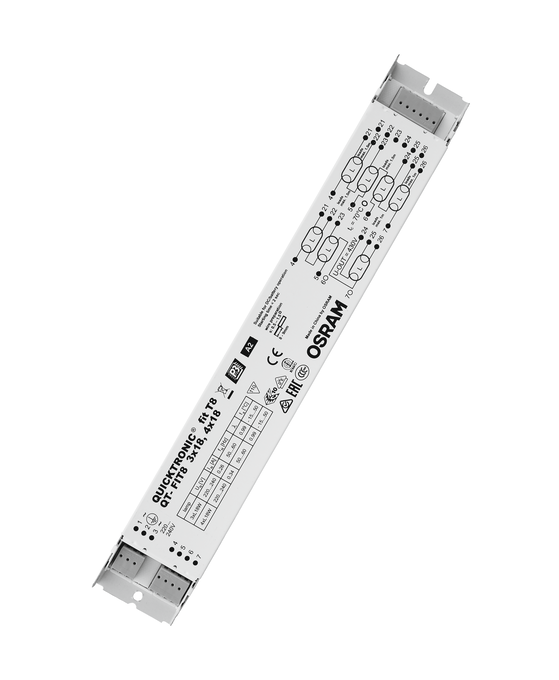

Name: QT-FIT8 3X18,4X18 - led-sklad.ru
SKU: 4008321294302
Availability: InStock

Product benefits

Long lamp life
No adverse effect from frequent on/off switching
Automatic restart after lamp replacement
Perfect lamp start for applications with motion sensors
VDE/VDE EMC certified system
Very high energy efficiency due to cut-off technology

Areas of application

Open-plan offices, corridors and storage rooms
Public buildings
Strip lighting
Suitable for emergency lighting (DC operation)
Suitable for luminaires of protection class I

Product features

Supply voltage: 220…240 V
Line voltage: 198…264 V
Line frequency: 50 Hz | 60 Hz
Lamp start with optimum filament preheating
Energy Efficiency Index EEI: A2
Automatic shutdown of defective lamps and at end of life (EoL T.2)
Lamp operation: to EN 60929
Safety: to EN 61347-2-3

GTIN	4008321294302
Nominal wattage	73.00 W
Nominal voltage	220…240 V
Height	28.00 mm
Product weight	219.00 g
Body material	Metal
Ambient temperature range	-15…+50 °C
Temperature range at storage	-40…+85 °C
Type of protection	IP20
Dimmable	No
Standards	Acc. to EN 61347-2
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
Protection class	1
Mains frequency	50/60 Hz
Inrush current	15 A
Length	280.00 mm
Width	40.00 mm
Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Energy efficiency class	A2
Maximum temperature at tc test point	70 °C
Operating frequency	40…50 kHz
Input voltage DC	185…264 V 1)
ECG lifetime	50000 h 1)
Cable cross-section, output side	0.5…1.5 mm² 1)
Permitted rel. humidity during operation	5…85 % 1)
Approval marks – approval	V
Cable cross-section, input side	0.5…1.5 mm² 1)
Mounting hole spacing, length	270,0 mm
Max. cable length to lamp/LED module	1.0 m / 1.5 m
Input voltage AC	198…264 V
Casing material	Metal
Max.housing temperature in case of fault	110 °C
Suitable for fixtures with prot. class	I
U-OUT (working voltage)	430 V
Max. ECG no. on circuit breaker 10 A (B)	8 2)
Max. ECG no. on circuit breaker 16 A (B)	13 2)
Starting time [PIM]	2 s
End of lamp life safety shutdown	EOL T.2
EEI – Energy Label	A2
