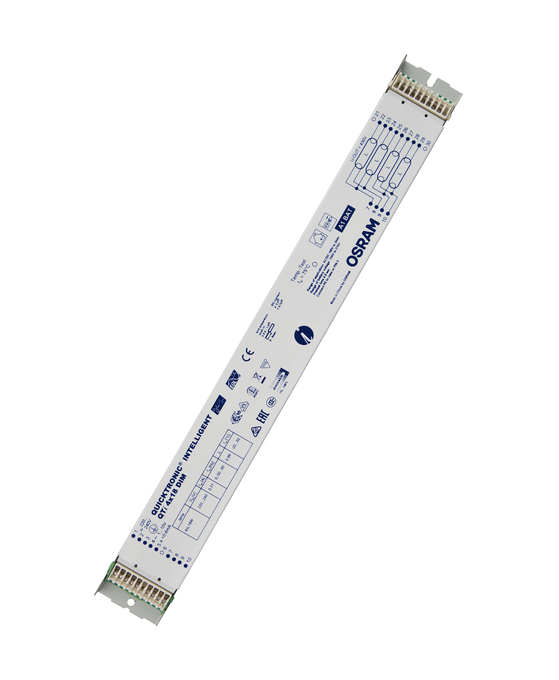

Name: QTi 4X18 DIM - led-sklad.ru
SKU: 4008321070012
Availability: InStock

Product benefits

Same luminous flux with direct and alternating current
Perfect lamp start for applications with motion sensors
Dimming of amalgam lamps without flickering or reduced lifespan
Very high efficiency thanks to cut-off technology
Automatic restart after lamp replacement
ECGs comply with MINERGIE standard due to very low standby consumption
Configurable emergency power characteristics
Control via the 1…10 V interface

Areas of application

Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
Installation in emergency lighting systems according to IEC 61347-2-3, appendix J
Industry
Open-plan offices, corridors and storage rooms
Public buildings
Suitable for luminaires of protection class I

Product features

Control via 1…10 V interface
Supply voltage: 220…240 V
Line frequency: 0 Hz | 50 Hz | 60 Hz
Line voltage: 198…264 V
Dimming range: 1…100 % luminous flux
Lamp start: within 0.6 s
Lifetime: > 100,000 h (for T = 65 °C at T_c)
Automatic shutdown of defective lamps and at end of life (EoL T.2)
Energy Efficiency Index EEI: A1 BAT
Overtemperature protection: Thermal management at high t_c temperatures
Safety: to EN 61347-2-3
Lamp operation: to EN 60929
RI suppression: to EN 55015:2006+A1:2007+A2:2009/CISPR 15
Line harmonics according to EN 61000-3-2
Immunity according to EN 61547

GTIN	4008321070012
Nominal wattage	69.00 W
Nominal voltage	220…240 V
Height	21.00 mm
Product weight	401.00 g
Body material	Metal
Ambient temperature range	-20…+50 °C
Temperature range at storage	-40…+85 °C
Type of protection	IP20
Dimmable	Yes
Standards	Acc. to EN 61347-2
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
Protection class	1
Mains frequency	50/60 Hz
Inrush current	35 A
Length	360.00 mm
Width	40.00 mm
Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Energy efficiency class	A1
Type of current	AC/DC
Maximum temperature at tc test point	75 °C
Operating frequency	40…100 kHz
Input voltage DC	154…276 V
ECG lifetime	100000 h 1)
Dimming range	1…100 % 1)
Dimming interface	1…10 V
Cable cross-section, output side	0.5…1.5 mm
Permitted rel. humidity during operation	5…85 % 1)
Approval marks – approval	V
Cable cross-section, input side	0.5…1.5 mm
Wire preparation length, input side	8.0…9.0 mm 2)
Mounting hole spacing, length	350,0 mm
Overheating protection	Power reduction and switch off at T > 75 °C at the tc point
Overload protection	Automatic switch off, reversible
Wire preparation length, output side	8.0…9.0 mm 2)
Input voltage AC	198…264 V
Casing material	Metal
Max.housing temperature in case of fault	110 °C
Suitable for fixtures with prot. class	I
Max. ECG no. on circuit breaker 10 A (B)	12 1)
Max. ECG no. on circuit breaker 16 A (B)	19 1)
Starting time [PIM]	0.6 s
End of lamp life safety shutdown	EOL T.2
EEI – Energy Label	A1 BAT
