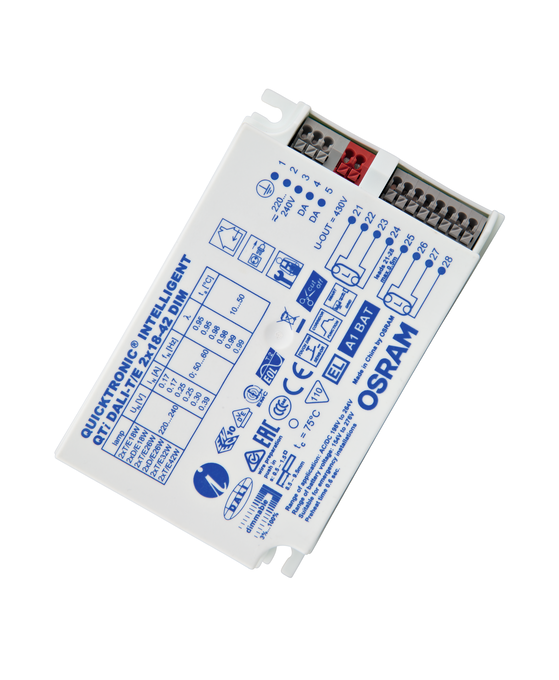

Name: QTi DALI-T/E 2X18…42 DIM - led-sklad.ru
SKU: 4008321060822
Availability: InStock

Product benefits

System+ Guarantee available
Easy integration in luminaire thanks to same dimensions like DALI GI ECG

DALI product features

Control via the DALI interface
Compliance with the DALI Version-1 and IEC 60929
Control input protected against overvoltage and polarity reversal (OSRAM ECG)

Touch DIM and Touch DIM Sensor function

Manual dimming without controller and with standard switches
Including memory function (double click) and soft start

Areas of application

Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
Installation in emergency lighting systems according to IEC 61347-2-3, appendix J
Open-plan offices, corridors and storage rooms
Public buildings
Suitable for luminaires of protection class I

Product features

Corridor function for direct connection of ECG to common motion sensor
Corridor function with pre-programmed light program
Touch DIM function for free parameterization of light value and turn on time
Fit for SMART GRID for feedback of consumed mains power and lamp operating hours
Fit for emergency function for automatic detection of emergency lighting by ECG
Very low standby power consumption: < 0.2 W (A1 BAT)
Lifetime: > 100,000 h (for T = 65 °C at T_c)
Very high number of switching cycles: up to 300,000
Dimming range: 1…100 % (3…100 % with compact fluorescent lamp)
POWER2LAMP function for optimal matching of ECG power to lamp during lamp lifetime
Line frequency: 0 Hz, 50…60 Hz, rectified AC

References / Links

For more information on the system guarantee and the terms and conditions of the guarantee visit

GTIN	4008321060822
Nominal wattage	90.00 W
Nominal voltage	220…240 V
Height	33.00 mm
Product weight	247.00 g
Body material	Metal
Ambient temperature range	+10…+50 °C
Temperature range at storage	-40…+85 °C
Type of protection	IP20
Dimmable	Yes
Standards	Acc. to EN 61347-2
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
Protection class	1
Mains frequency	50/60 Hz
Inrush current	45 A
Length	123.00 mm
Width	79.00 mm
Product remark	Optional cable clamp, see chapter ECG mountings — cable clamp
Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Energy efficiency class	A1
Type of current	AC/DC
Maximum temperature at tc test point	75 °C 1)
Operating frequency	42…130 kHz
Input voltage DC	154…276 V
ECG lifetime	100000 h 1)
Dimming range	3…100 % 1)
Dimming interface	DA
Permitted rel. humidity during operation	5…85 % 2)
Approval marks – approval	V
Cable cross-section, input side	0.5…1.5 mm²
Wire preparation length, input side	8.5…9.5 mm 1)
Mounting hole spacing, length	129,5 mm
Overheating protection	Yes
Wire preparation length, output side	8.5…9.5 mm 1)
Max. cable length to lamp/LED module	0,5 m
Nominal output voltage	430 V
Power loss in stand-by mode	0.2
Casing material	Metal
Max.housing temperature in case of fault	110 °C
Suitable for fixtures with prot. class	I
Max. ECG no. on circuit breaker 10 A (B)	8 1)
Max. ECG no. on circuit breaker 16 A (B)	13 1)
Starting time [PIM]	0.6 s
End of lamp life safety shutdown	EOL T.2
EEI – Energy Label	A1 BAT
