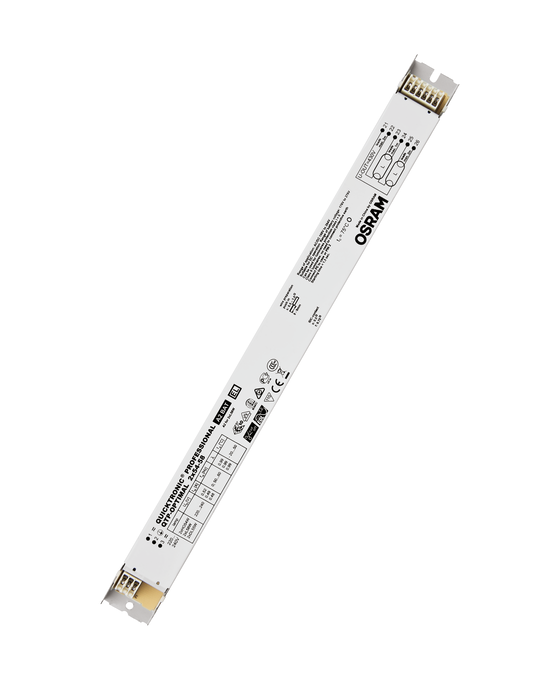

Name: QTP-OPTIMAL 2X54…58 - led-sklad.ru
SKU: 4008321880253
Availability: InStock

Product benefits

Long lamp life
No adverse effect from frequent on/off switching
Automatic restart after lamp replacement
Perfect lamp start for applications with motion sensors
VDE/VDE EMC certified system
Very high energy efficiency due to cut-off technology

Areas of application

Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
Industry
Open-plan offices, corridors and storage rooms
Public buildings
Sports halls and factories
Strip lighting
Suitable for emergency lighting (DC operation)
Modernization of existing systems
Suitable for luminaires of protection classes I and II

Product features

Supply voltage: 220…240 V
Line voltage: 198…264 V
Line frequency: 0 Hz | 50 Hz | 60 Hz
Lamp start with optimum filament preheating
Lifetime: up to 100,000 h (temperature at T_c = 65 °C, max. 10 % failure rate)
Energy Efficiency Index EEI: A2 BAT
Automatic shutdown of defective lamps and at end of life (EoL T.2)
Safety: to EN 61347-2-3
Lamp operation: to EN 60929

GTIN	4008321880253
Nominal wattage	115.00 W
Nominal voltage	220…240 V
Height	21.00 mm
Product weight	239.9 g
Body material	Metal
Ambient temperature range	-20…+50 °C
Temperature range at storage	-40…+85 °C
Type of protection	IP20
Dimmable	No
Standards	Acc. to IEC 61347-2-3 / App.
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
Protection class	I
Mains frequency	50/60 Hz
Inrush current	57 A
Length	360.00 mm
Width	30.00 mm
Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Energy efficiency class	A2 BAT
Maximum temperature at tc test point	75 °C
Operating frequency	40…50 kHz
Input voltage DC	176…276 V
ECG lifetime	100000 h 1)
Suitable for emergency lighting	Yes
Permitted rel. humidity during operation	5…85 % 1)
Mounting hole spacing, length	350,0 mm
Max. cable length to lamp/LED module	2.0 m / 1.0 m
Input voltage AC	198…264 V
Casing material	Metal
Max.housing temperature in case of fault	110 °C
U-OUT (working voltage)	430 V
Max. ECG no. on circuit breaker 10 A (B)	8 1)
Max. ECG no. on circuit breaker 16 A (B)	13 1)
Starting time [PIM]	1.5 s
End of lamp life safety shutdown	EOL T.2
EEI – Energy Label	A2 BAT
