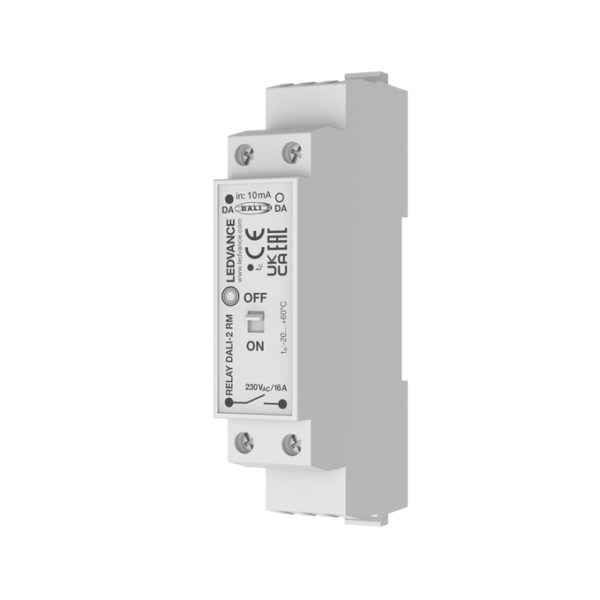

RELAY DALI-2 RAIL MOUNTING

RELAY DALI-2 RAIL MOUNTING

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854709159 Категория:
Product benefits
  • Simple integration of non-dimmable luminaires in DALI systems
  • Configurable Power-Up behaviour
  • Integrated current limiter
  • Over temperature protection for save operation
  • Supports over voltage protection for long product lifetime
  • Zero cross switching
  • Compatible with LEDVANCE VIVARES DALI light management system
Areas of application
  • Integration of non-dimmable luminaires in DALI lighting systems (DT7)
Product features
  • Installation in electrical cabinets on DIN Rails
  • Suitable for high inrush currents up to 350 A
  • Fulfills the requirements for DALI Device Type 7 — switching function
  • Switching of non-dimmable loads up to 16 A via DALI
  • Suitable for loads with high inrush current
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For current information see
GTIN

4099854709159
Nominal wattage

3000.00 W
Nominal voltage

230 V
Nominal current

16 A
Height

56.00 mm
Product weight

52.00 g
Product color

Grey
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+60 °C
Temperature range at storage

-20…+75 °C
Type of protection

IP20
Dimmable

Yes
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Protection class

II
Mains frequency

50…60 Hz
Inrush current

350 A
Length

98.00 mm
Width

17.50 mm
Product remark

Available from December 2025
Type of current

AC
Maximum temperature at tc test point

75 °C
Dimming interface

DALI-2
Cable cross-section, output side

0.5…2.5 mm² 2)
Cable cross-section, input side

0.5…2.5 mm² 1)
Wire preparation length, input side

7.0 mm
Overheating protection

Reversible
Wire preparation length, output side

7.0 mm
Type of installation

Rail mounting
Reverse polarity protection

Yes
Number of control outputs

1
Over voltage protection

Yes
