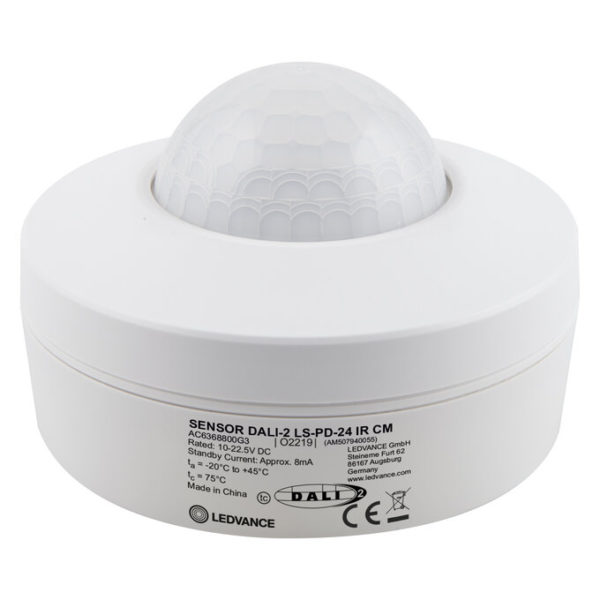

Name: SENSOR DALI-2 LIGHT/PRESENCE-24 INFRARED CEILING MOUNTING - led-sklad.ru
SKU: 4058075843882
Availability: InStock

Light sensor up-to 2000 lx
Quick and easy installation using spring clips
Integrated DALI bus power supply (no mains connection required)
Several sensors can be connected to a DALI line
Can be integrated into lighting and building management systems that support DALI-2 sensors
Compatible with LEDVANCE VIVARES DALI light management system
Includes shutter accessory to optimize the sensor detection area

GTIN	4058075843882
Nominal wattage	0.10 W
Nominal voltage	10…22,5 V
Height	67.00 mm
Product weight	119.00 g
Product color	White
Ambient temperature range	-20…+45 °C
Type of protection	IP54
Dimmable	No
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
Diameter	105.00 mm
Protection class	II
Mains frequency	0 Hz
Length	105.00 mm
Width	105.00 mm
Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Maximum temperature at tc test point	75 °C
Temperature range in operation	-20…+45 °C
Dimming interface	DALI-2
Approval marks – approval	CE
Cable cross-section, input side	1.0…2.5 mm²
Wire preparation length, input side	6…8 mm
Mounting hole spacing, length	66.00 mm
Type of installation	Surface mounting
Maximum installation height	4 m
Detection area	24 m
Detection angle	360 °
Operating range, light sensor	5…2000 lx
Max. presence detection area	24 m
